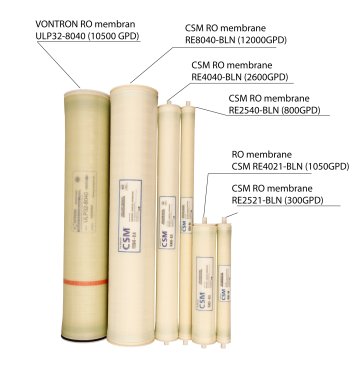

CSM RO membrāna RE2540-BLN (800GPD)

Ražotājs: TORAY
Produkta kods: RE2540-BLN
Šāda kombinācija neeksistē
163.00
197.23

RE 2540-BL
Low pressure grade RO element for brackish water

SPECIFICATIONS

General Features:

  • Permeate flow rate: 800 GPD ( 3.0 m3/day)
  • Stabilized salt rejection: 99.2%
  • Effective membrane area: 27 ft2 (2.5 m2)

Membrane type:

  • Thin-Film Composite
  • Membrane material: Polyamide(PA)
  • Element confguration: Spiral-Wound, FRP Wrapping

APPLICATION DATA

Operating Limits:

  • Max. Pressure Drop / Element - 15 psi (0.1 MPa)
  • Max. Pressure Drop / 240” Vessel - 60 psi (0.41 Mpa)
  • Max. Operating Pressure - 600 psi (4.14 MPa)
  • Max. Feed Flow Rate - 6 gpm (1.36 m3/hr)
  • Min. Concentrate Flow Rate - 1 gpm (0.23 m3/hr)
  • Max. Operating Temperature - 113 oF (45 oC)
  • Operating pH Range - 2.0–11.0
  • CIP pH Range - 1.0–13.0
  • Max. Turbidity - 1.0 NTU
  • Max. SDI (15 min) - 5.0
  • Max. Chlorine Concentration < 0.1 mg/L

Design Guidelines for Various Water Sources:

  • Wastewater Conventional (SDI < 5) - 8–12 gfd
  • Wastewater Pretreated by UF/MF (SDI < 3) - 10–14 gfd
  • Seawater, Open Intake (SDI < 5) - 7–10 gfd
  • Seawater, Beach Well (SDI < 3) - 8–12 gfd
  • Surface Water (SDI < 5) - 12–16 gfd
  • Surface Water (SDI < 3) - 13–17 gfd
  • Well water (SDI < 3) - 13–17 gfd
  • RO permeate (SDI < 1) - 21–30 gfd

Saturation Limits (Using Antiscalants)*:

  • Langlier Saturation Index (LSI) <+1.5
  • Stiff and Davis Saturation Index (SDSI) <+0.5
  • CaSO 4 - 230% saturation
  • SrSO4 - 800% saturation
  • BaSO4 - 6,000% saturation
  • SiO2 - 100% saturation

*The above saturation limits are typically accepted by proprietary antiscalant manufacturers. It is the user’s responsibility to ensure proper chemical(s) and
concentration are dosed ahead of the membrane system to prevent scale
formation anywhere within the membrane system. Membrane elements fouled or damaged due to scale formation are not covered by the limited warranty.





Parādīt visu aprakstu

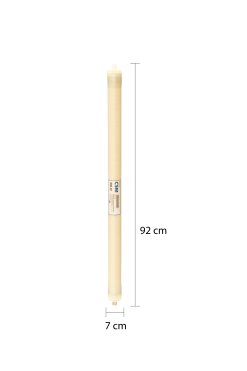

Platums cm

Augstums cm

Garums cm

Svars kg

9.00

9.00

108.00

1.70
