CLACK 1190FP IN&OUT HEAD vadības bloks

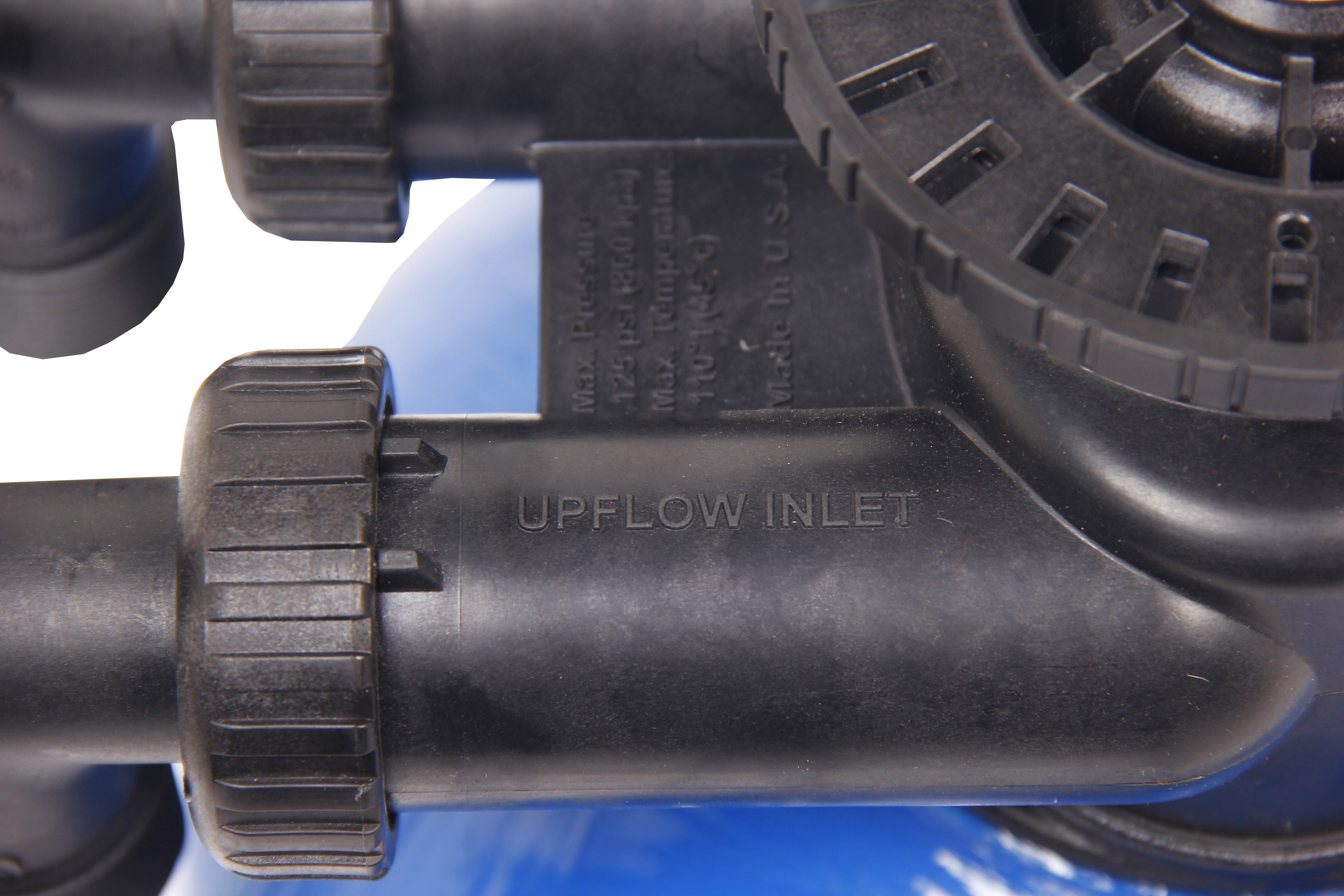

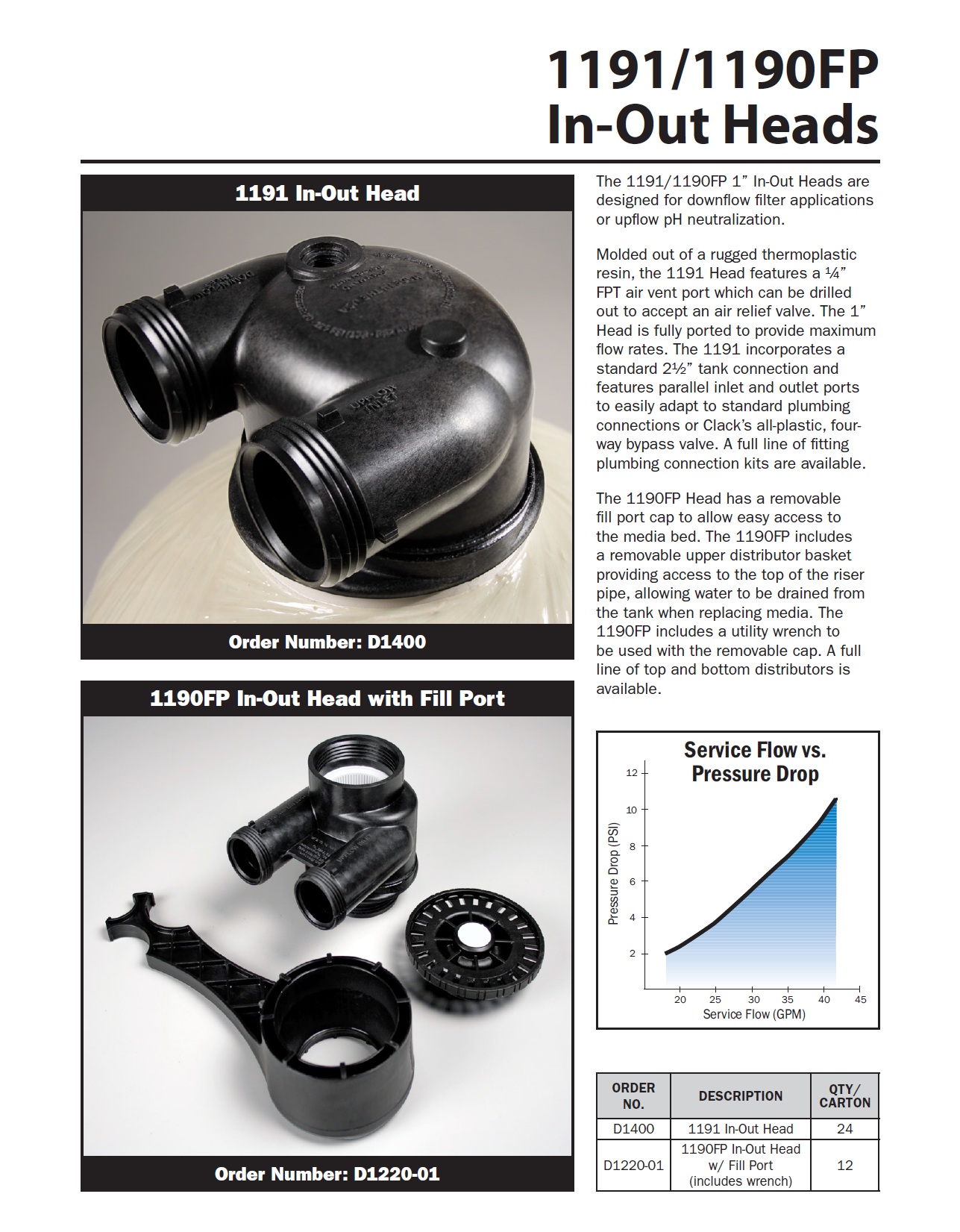

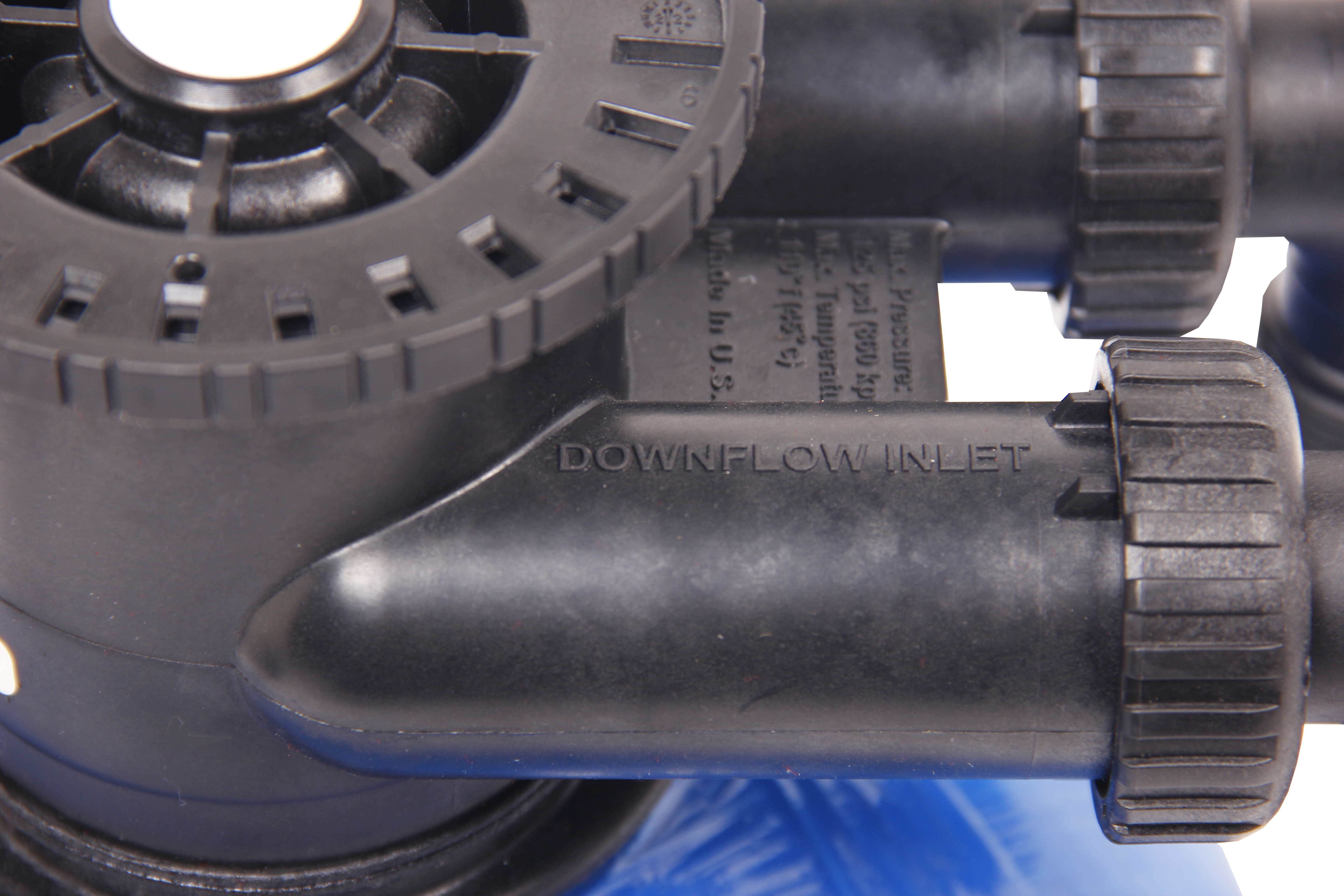

The 11911/1190FP 1’’ In-Out Heads are designed for downflow filter applications or upflow pH neutralization.

Material: rugged thermostatic resin

FRP air vent port: ¼’’

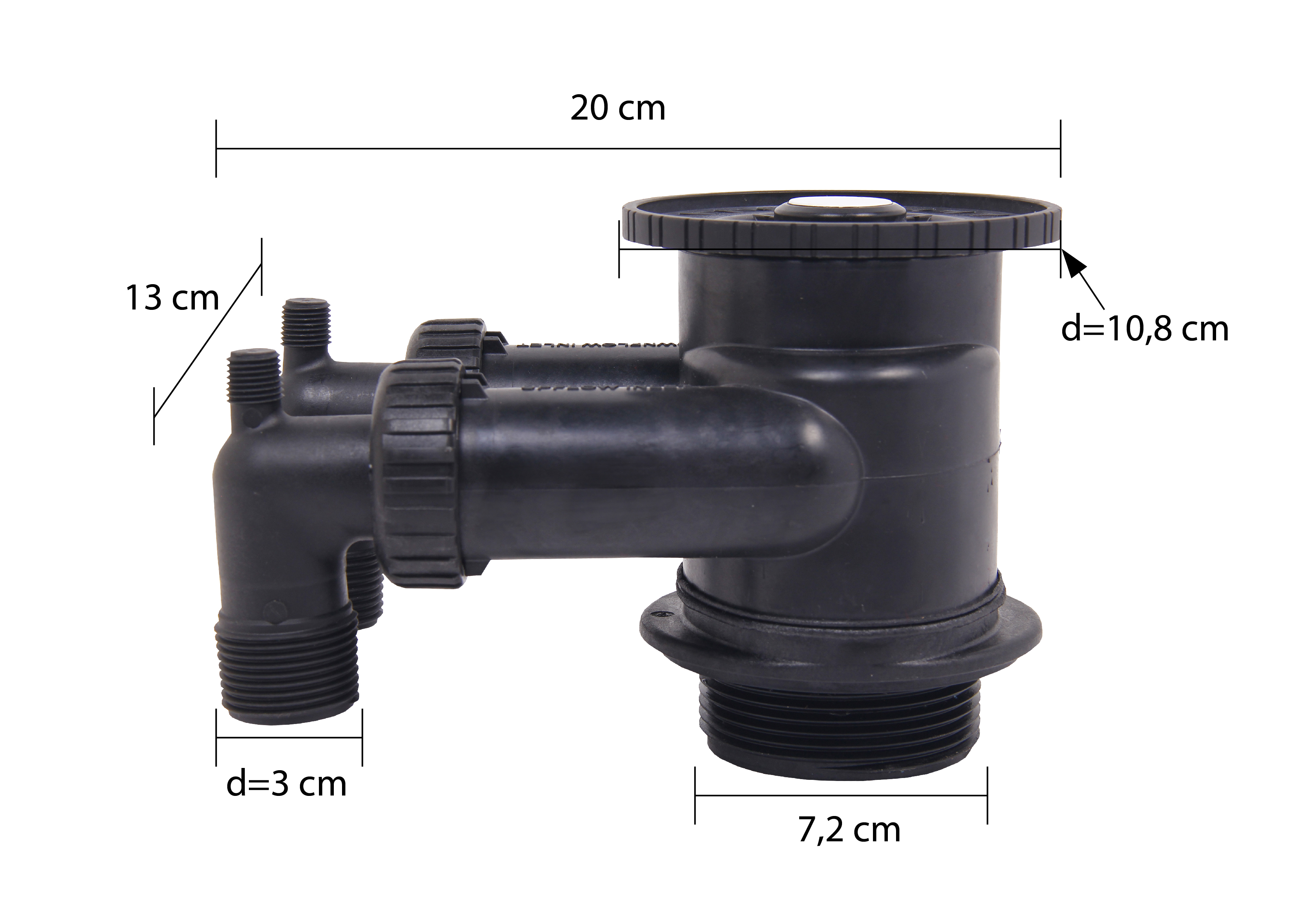

*Note: riser pipe port is sized for a 1.050” O.D. pipe.

Operating Pressures: 20-125 psi / 138-862 kPa

Temperature Ranges: 40-110°F / 4-43°C

Install only on cold water supplies!

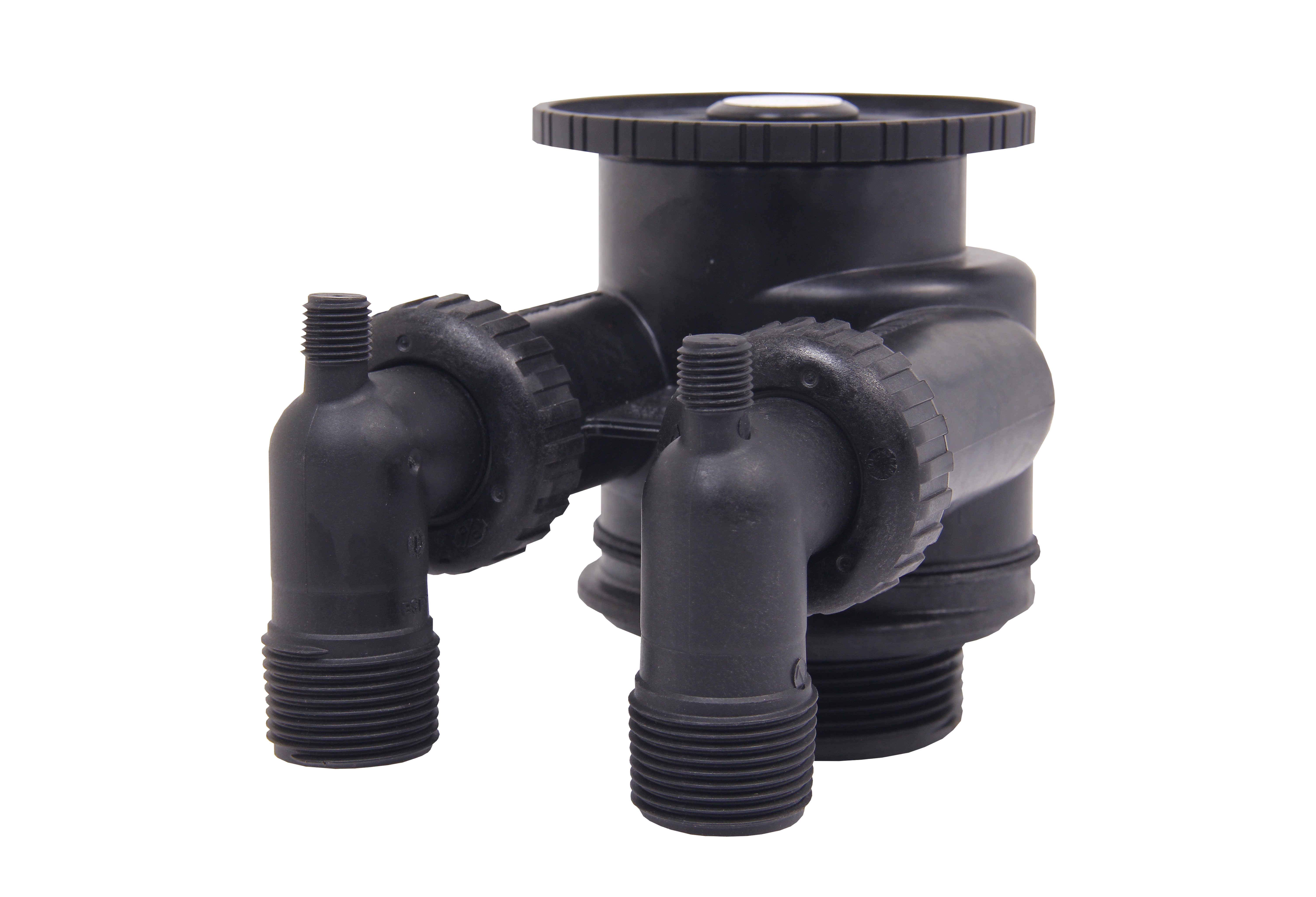

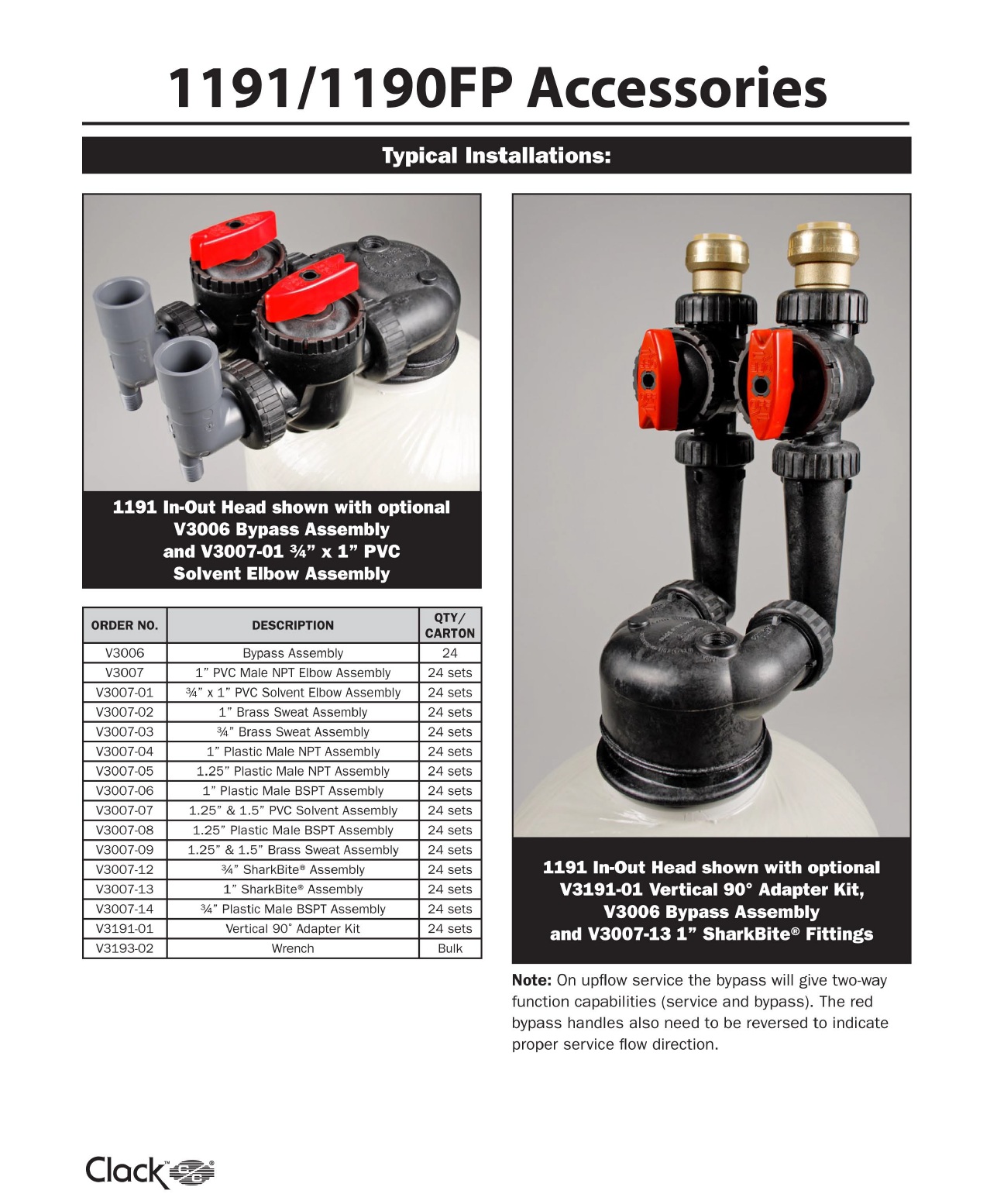

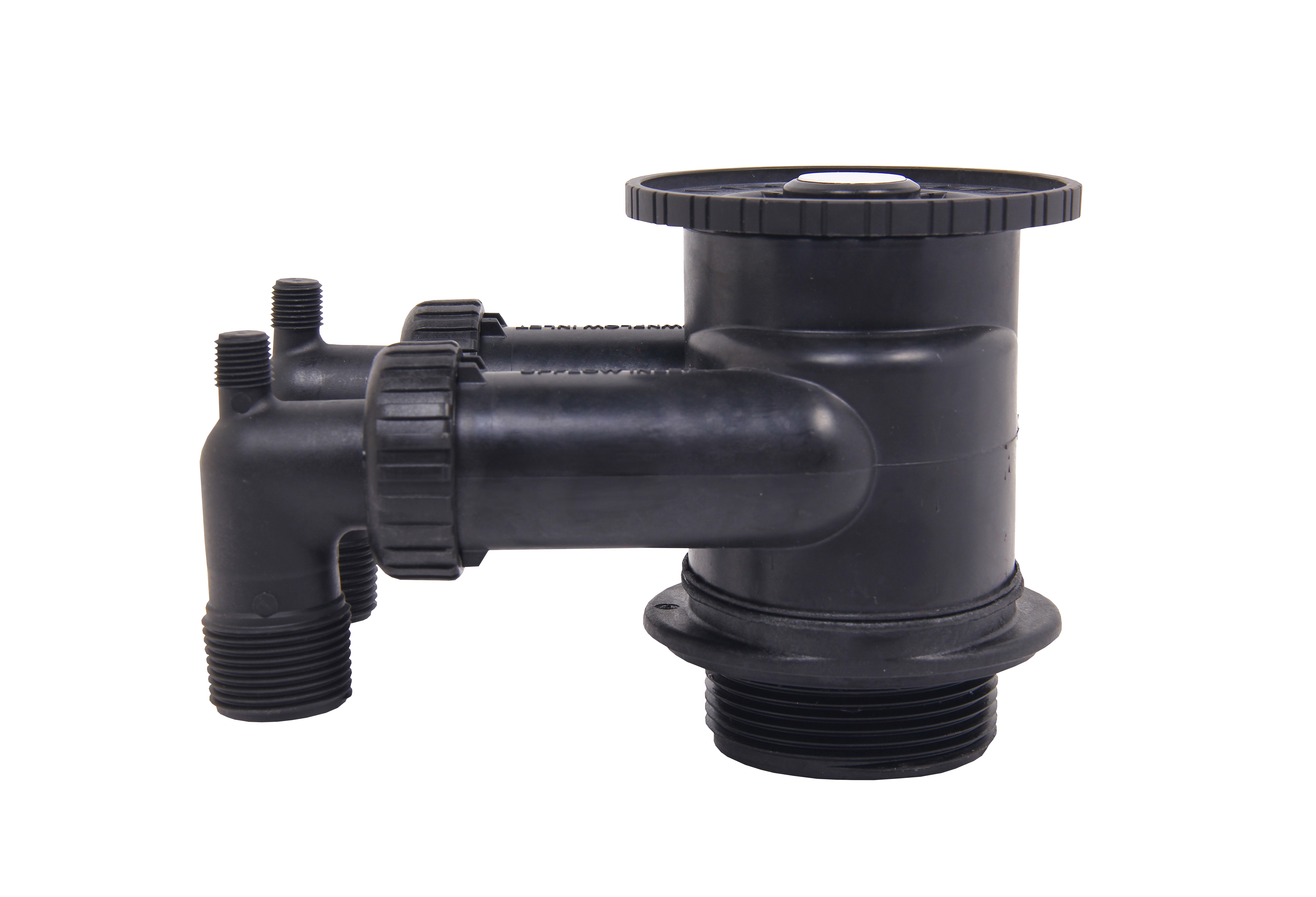

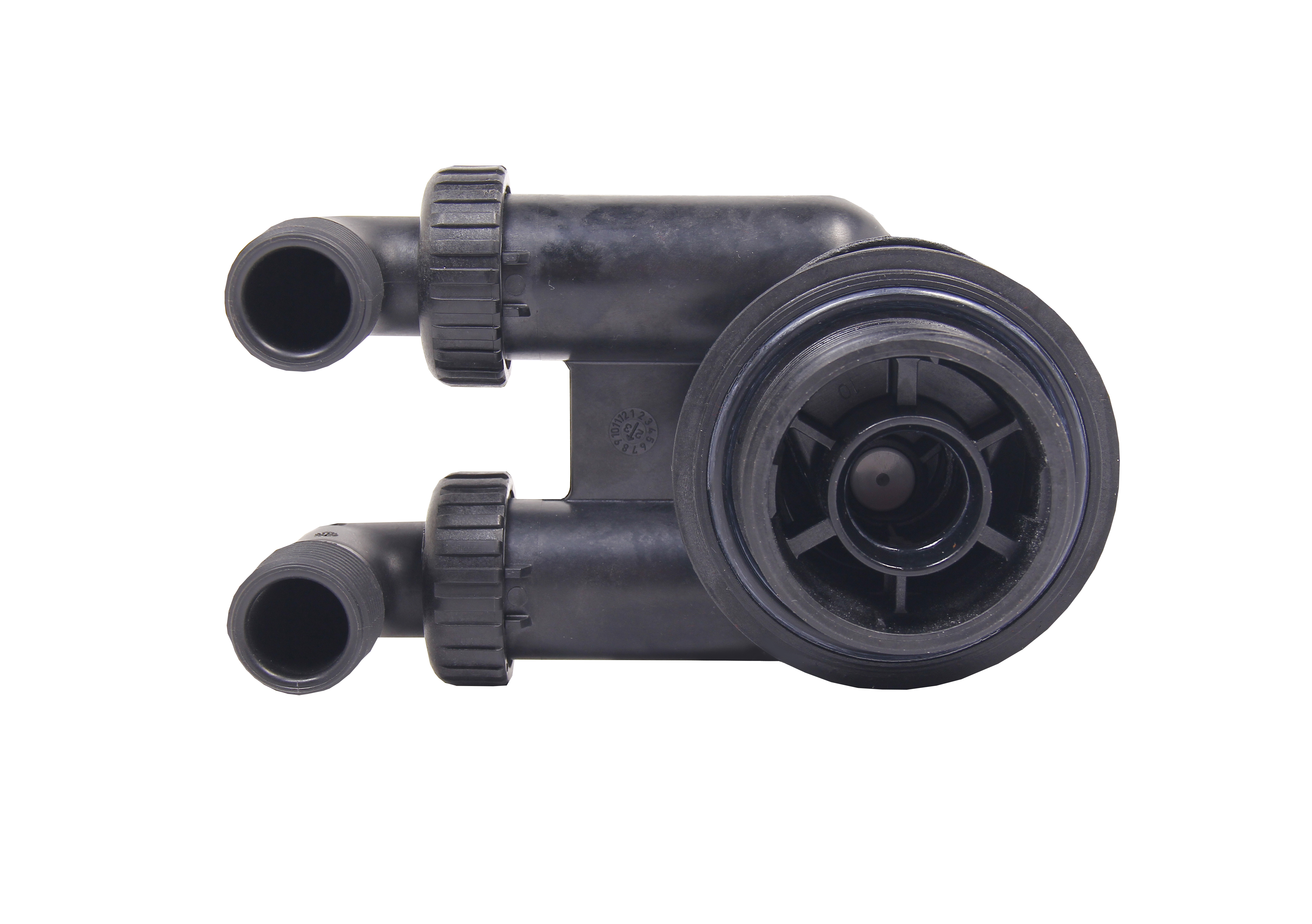

The 1” Head is fully ported to provide maximum flow rates.* The 1191 incorporates a standard 2½” tank connection and features parallel inlet and outlet ports to easily adapt to standard plumbing connections or Clack’s all-plastic, four-way bypass valve. A full line of fitting plumbing connection kits are available.

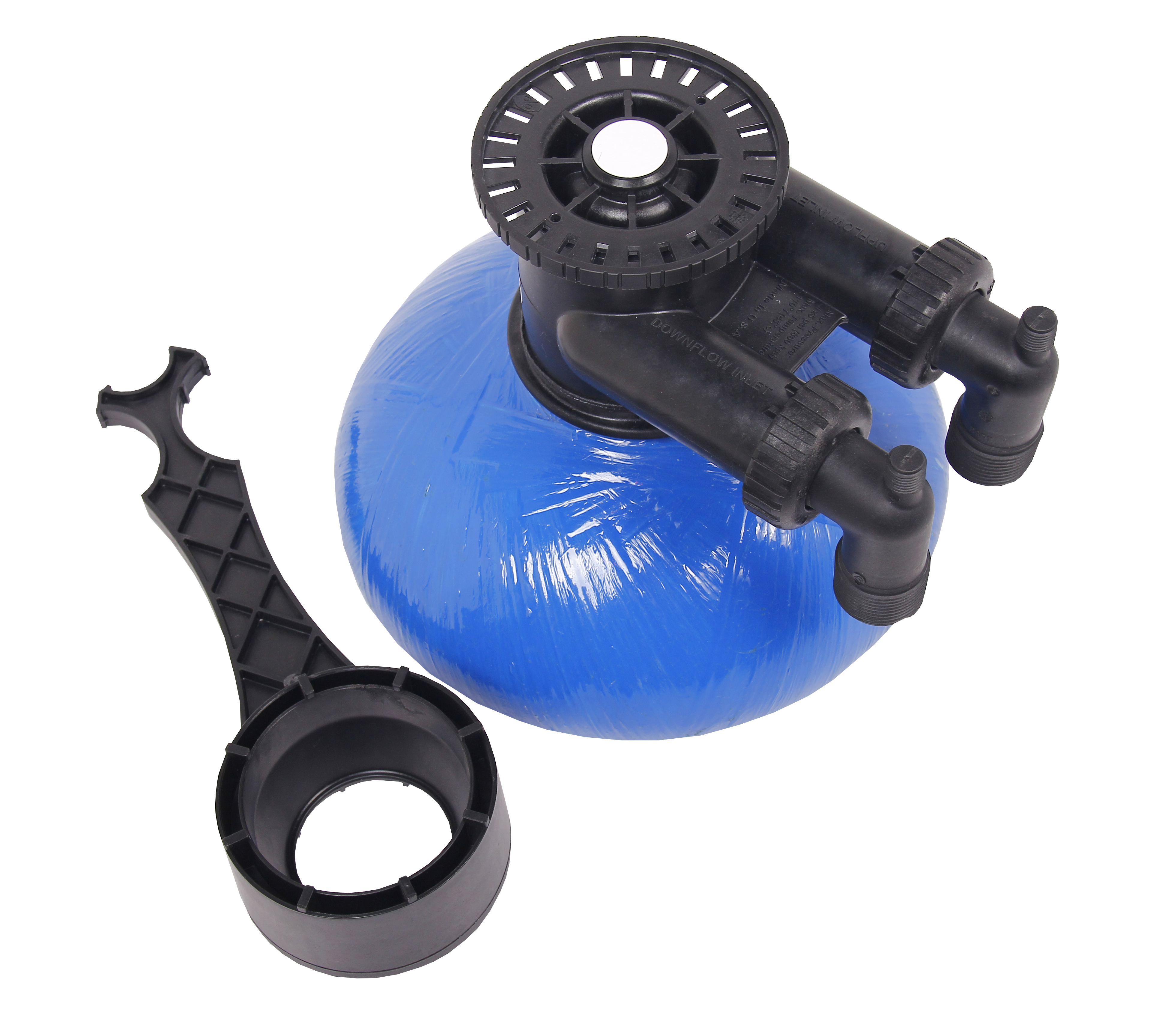

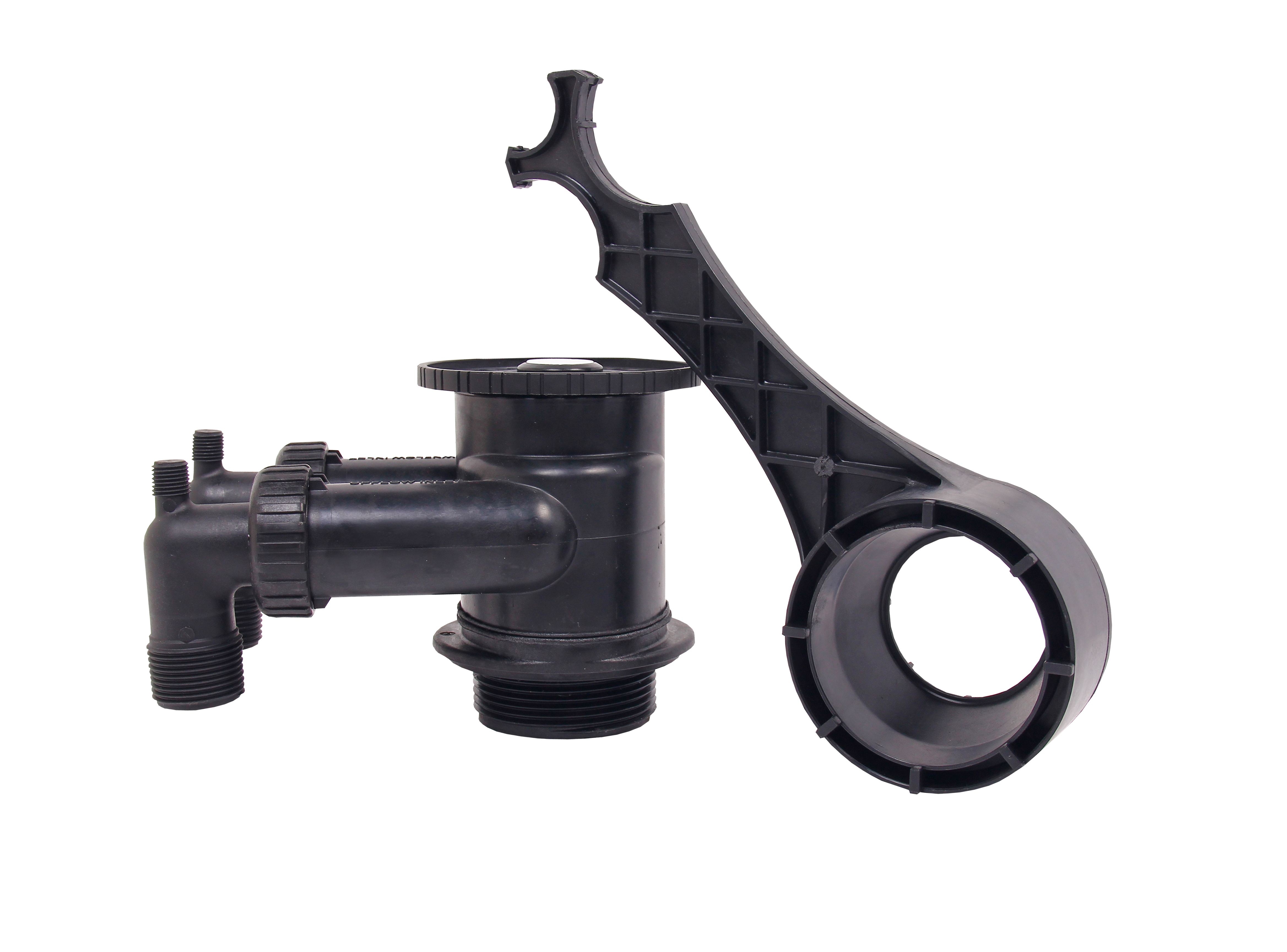

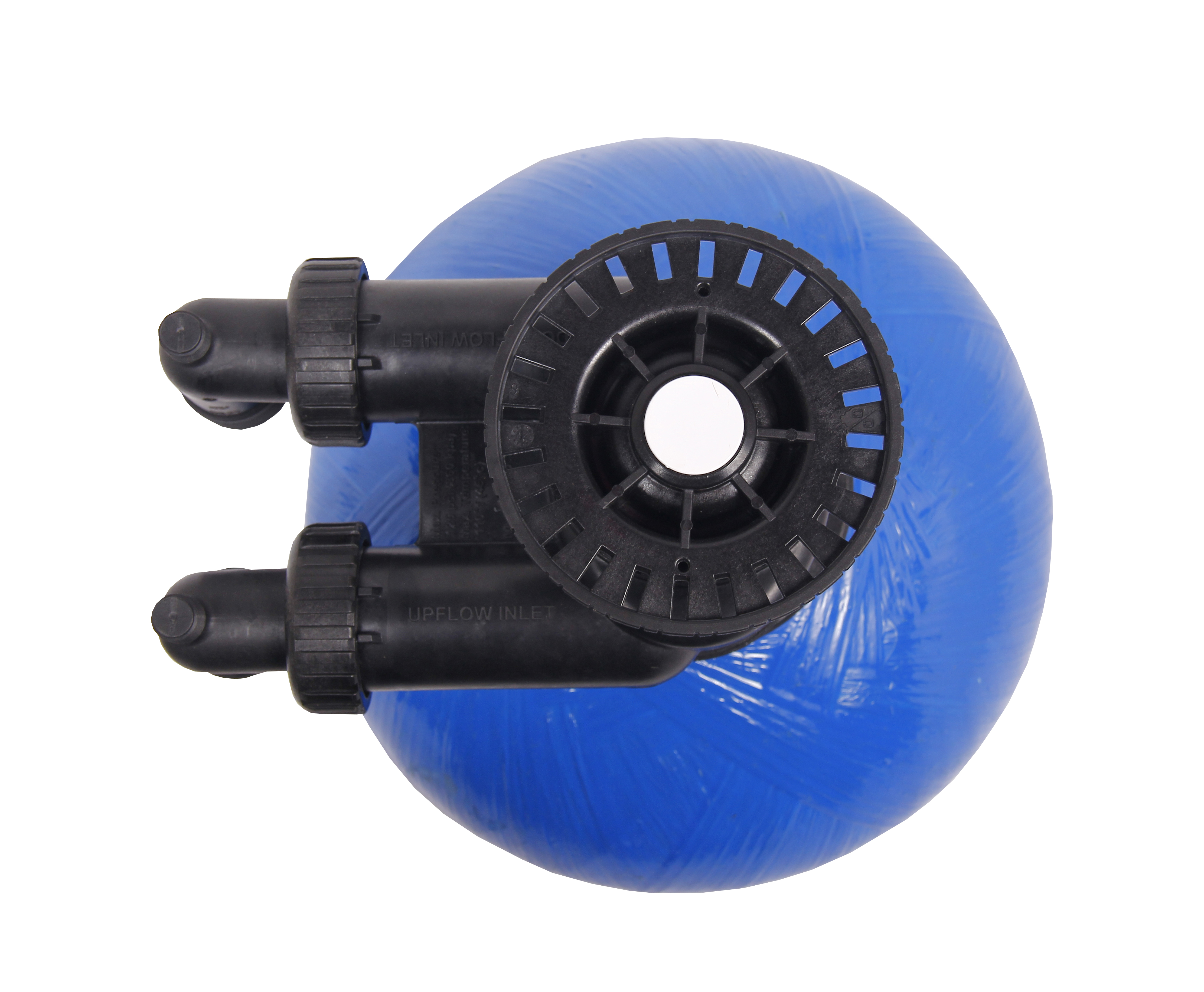

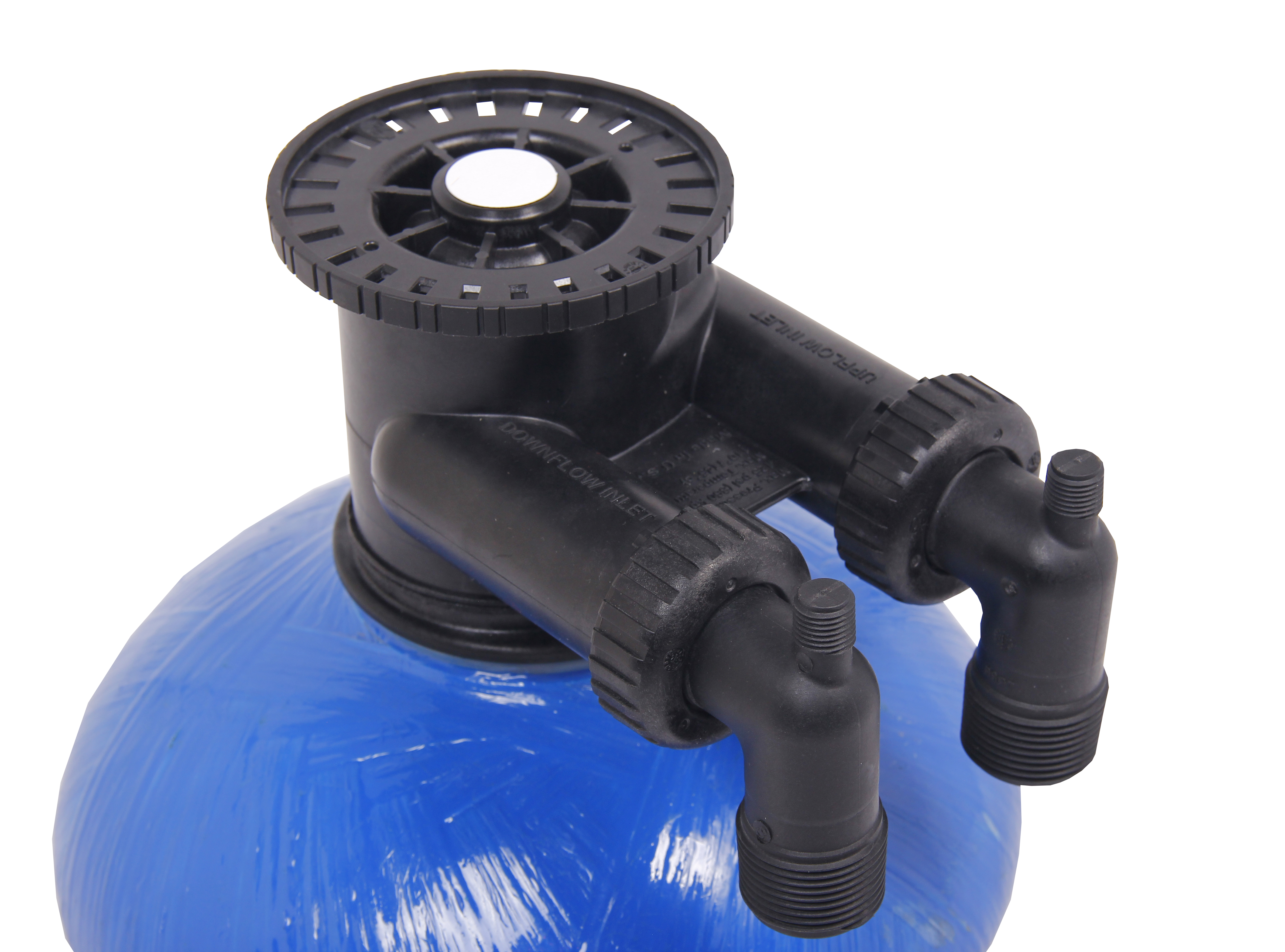

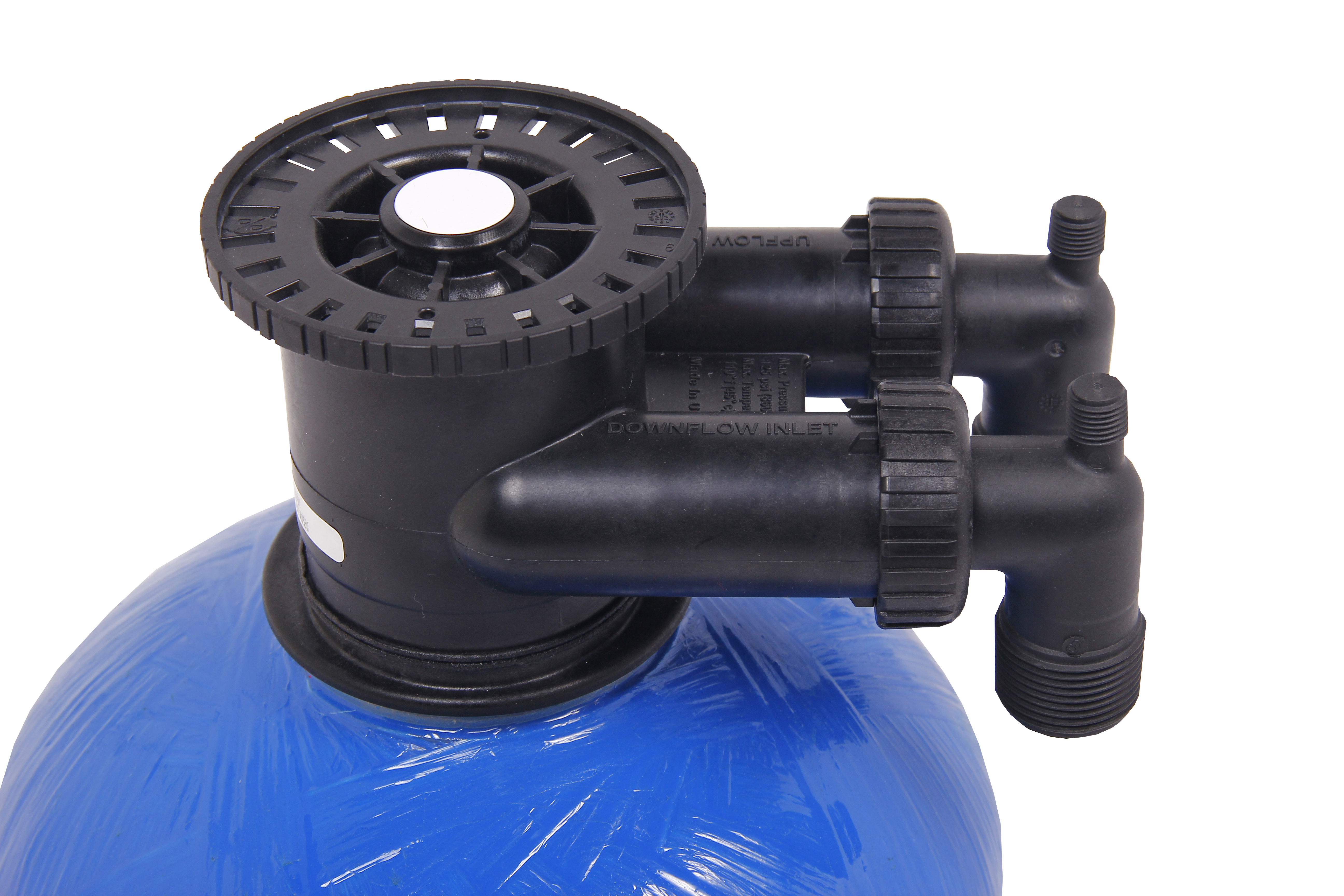

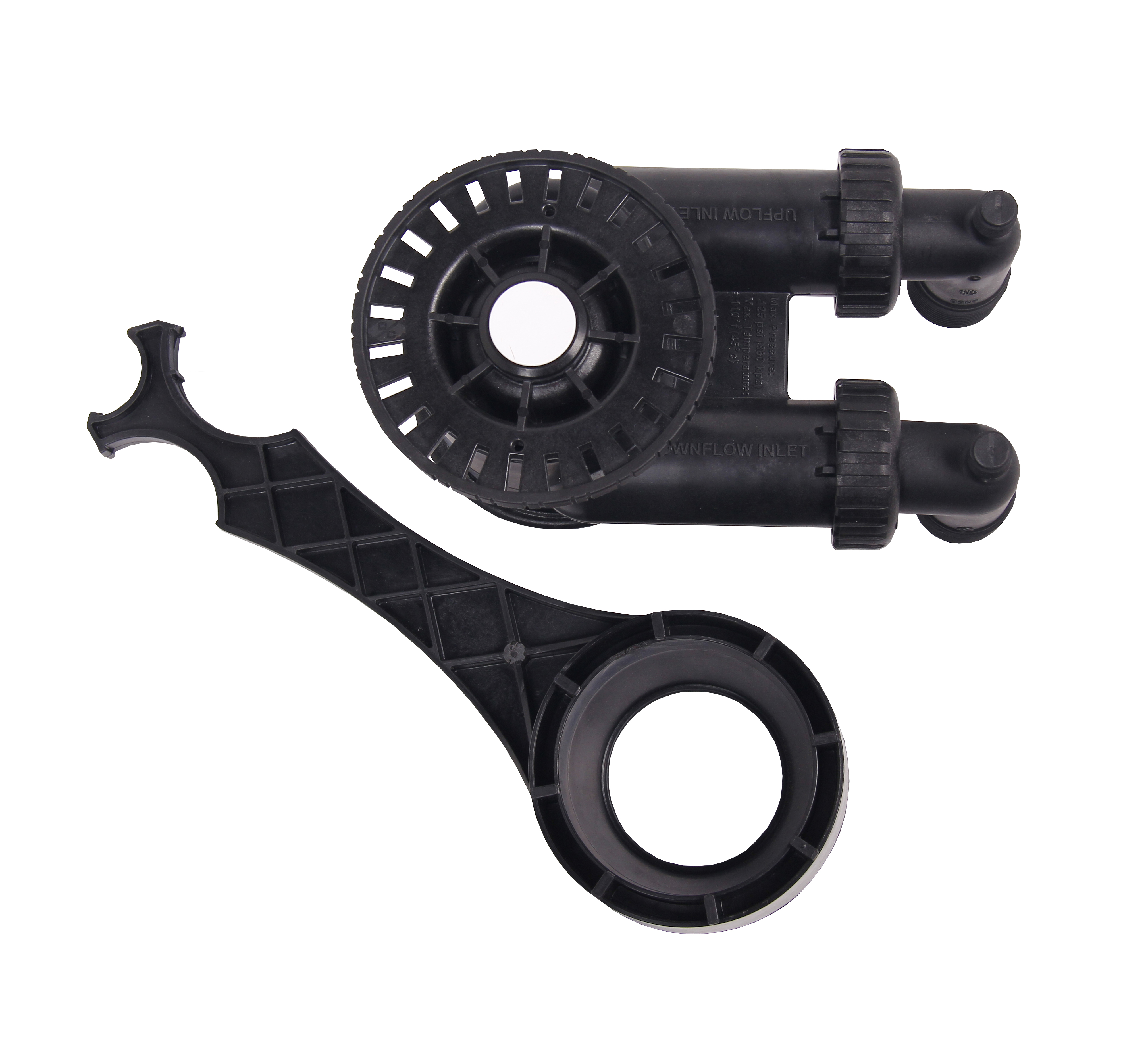

The 1190FP Head has a removable fill port cap to allow easy access to the media bed. The 1190FP includes a removable upper distributor basket providing access to the top of the riser pipe, allowing water to be drained from the tank when replacing media. The 1190FP includes a utility wrench to be used with the removable cap. A full line of top and bottom distributors is available.
