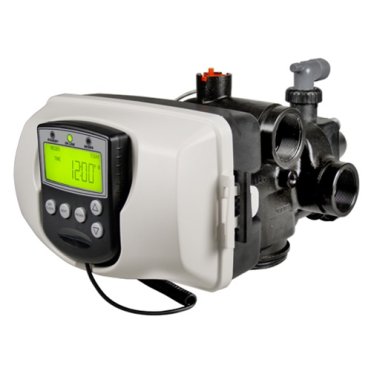

2” top mount or side mount control valve suited for commercial and industrial applications
Epoxy coated lead free brass valve body
Service flow rate 125 gpm (473 lpm) (28.4 m3/h), Backwash flow rate 125 gpm (473 lpm) (28.4 m3/h)
Solid state microprocessor with easy access front removable POD
Four methods to initiate the down flow regeneration; meter delayed, meter immediate, time clock delayed, or pressure differential
Pre or Post treated water regenerant refill
20-volt output AC adapter provides safe and easy installation
Inlet/Outlet (1): 2” Female NPT or BSPT/2.5” Groove Lock
Number of cycles: up to 9
Valve Material: lead free brass
Regeneration: downflow
Operating pressure (min/max): 20 - 125 psi (1.4 - 8.6 bar)
Operating temperature (min/max): 40º - 110º F (4C - 43C)
Electrical specification:
Supply Voltage: 230V AC
Supply Frequency: 50Hz
Output Voltage: 20V AC
Output Current: 750mA
Tank application:
Water Softener: 18’’-63’’ diameter
Water Filter (2): 18’’-48’’ diameter
