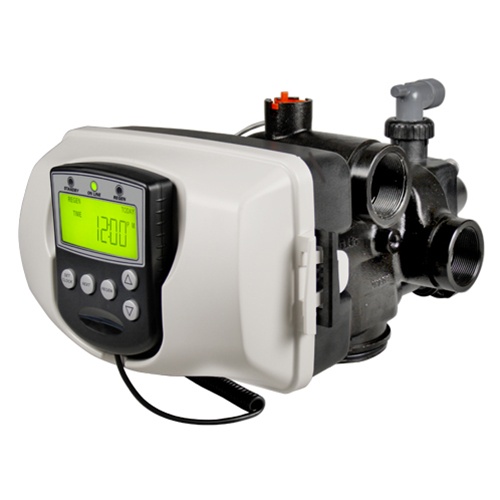

CLACK WS2H FILTER vadības bloks (ar skaitītāju)

Ražotājs: CLACK
Produkta kods: V2HBMZ-XX
Šāda kombinācija neeksistē
3,816.00
4,617.36

2” top mount or side mount control valve suited for commercial and industrial applications

Epoxy coated lead free brass valve body

Service flow rate 125 gpm (473 lpm) (28.4 m3/h), Backwash flow rate 125 gpm (473 lpm) (28.4 m3/h)

Solid state microprocessor with easy access front removable POD

Four methods to initiate the down flow regeneration; meter delayed, meter immediate, time clock delayed, or pressure differential

Pre or Post treated water regenerant refill

20-volt output AC adapter provides safe and easy installation

Inlet/Outlet (1): 2” Female NPT or BSPT/2.5” Groove Lock

Number of cycles:  up to 9

Valve Material: lead free brass

Regeneration: downflow

Operating pressure (min/max): 20 - 125 psi (1.4 - 8.6 bar)

Operating temperature (min/max): 40º - 110º F (4C - 43C)

Electrical specification:

Supply Voltage: 230V AC

Supply Frequency: 50Hz

Output Voltage: 20V AC

Output Current: 750mA

Tank application:

Water Softener: 18’’-63’’ diameter

Water Filter (2): 18’’-48’’ diameter
