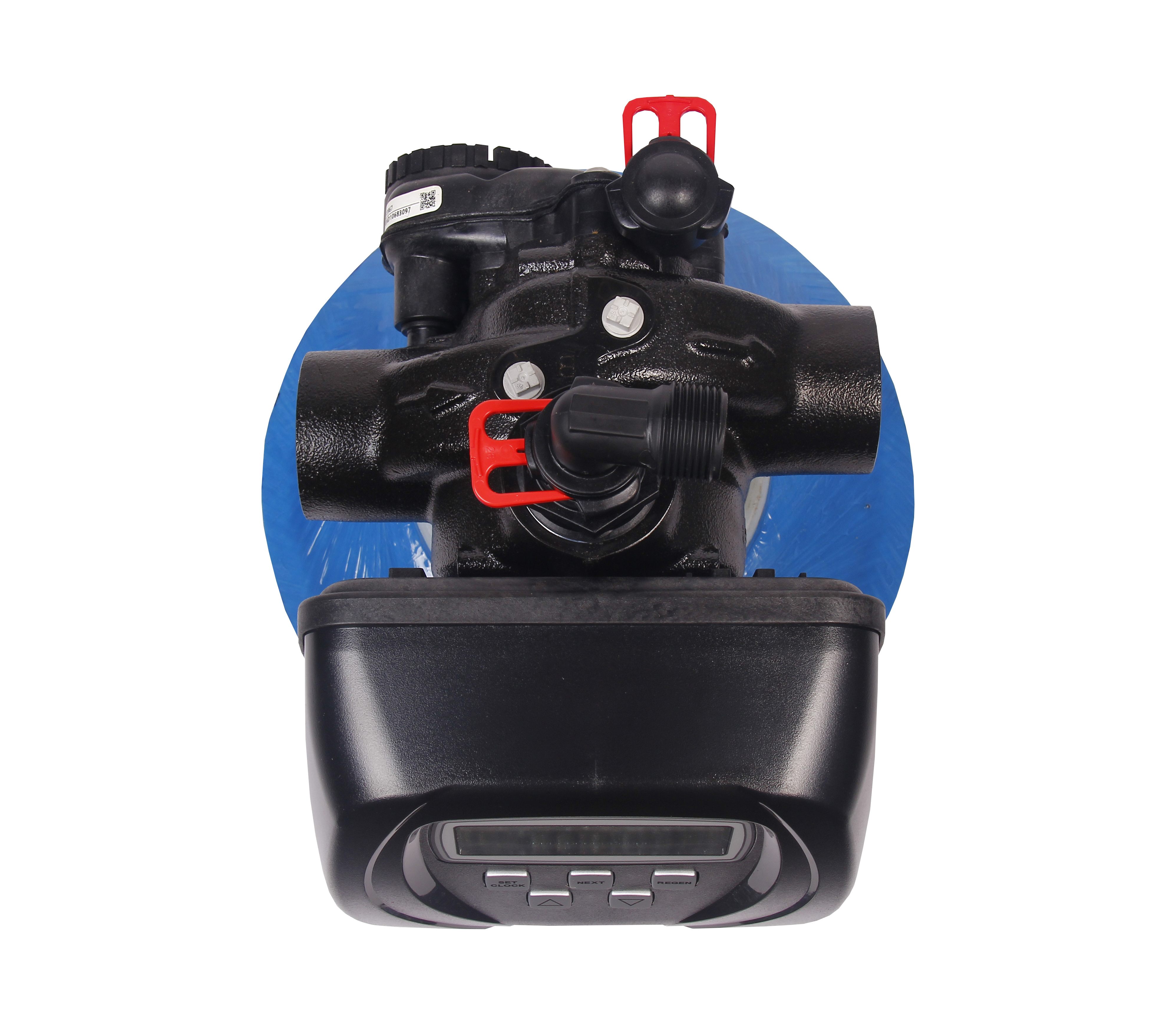

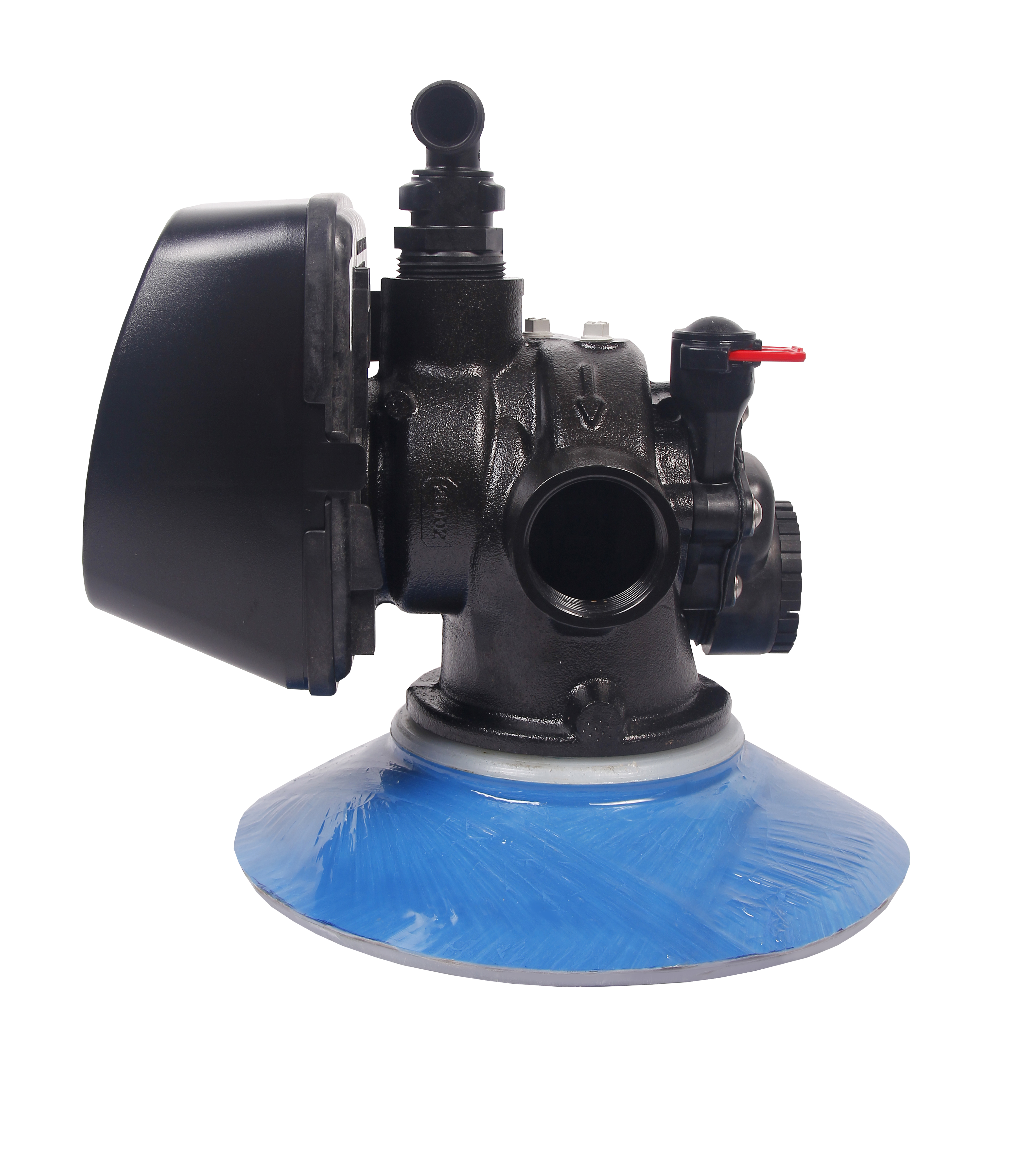

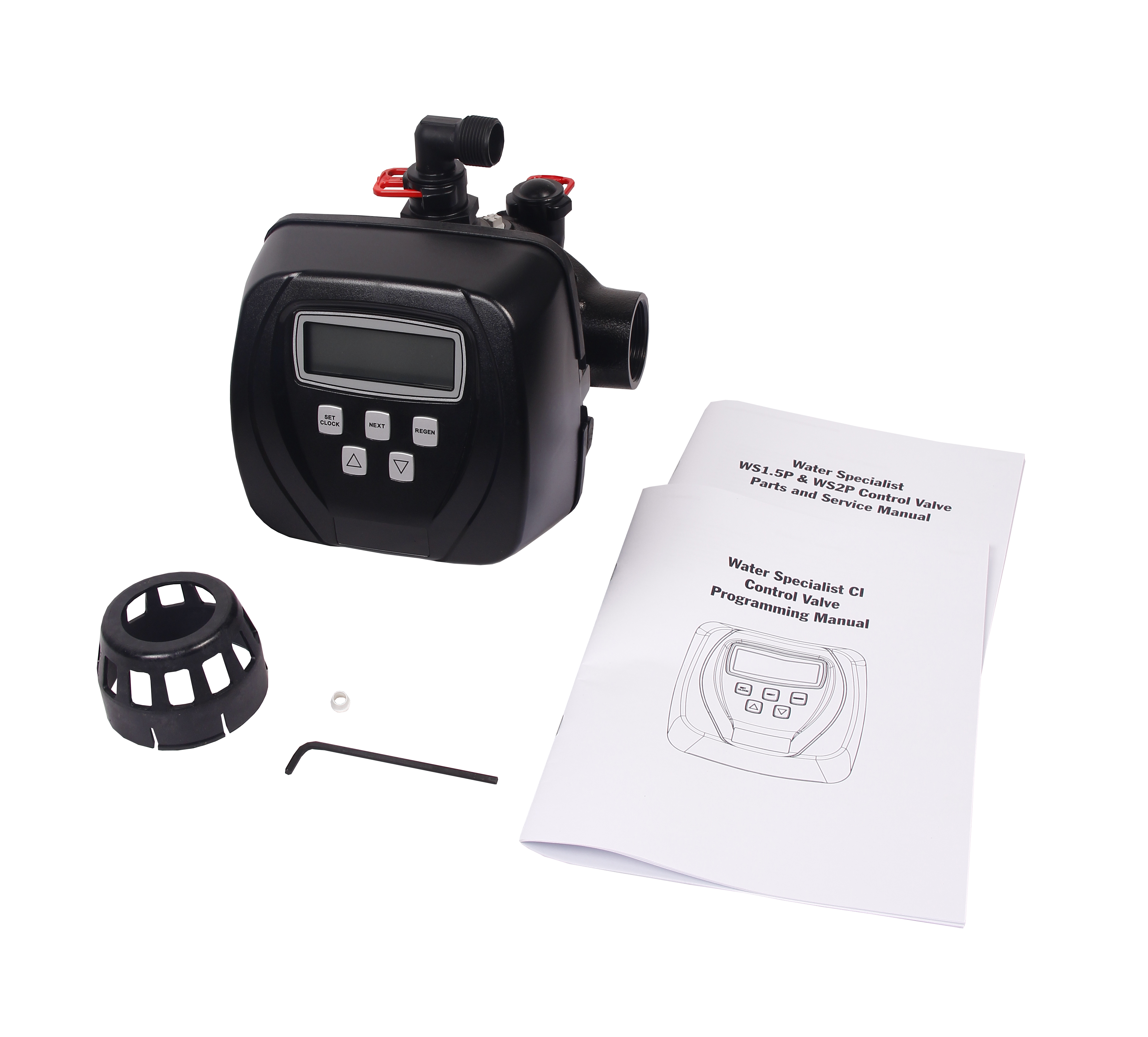

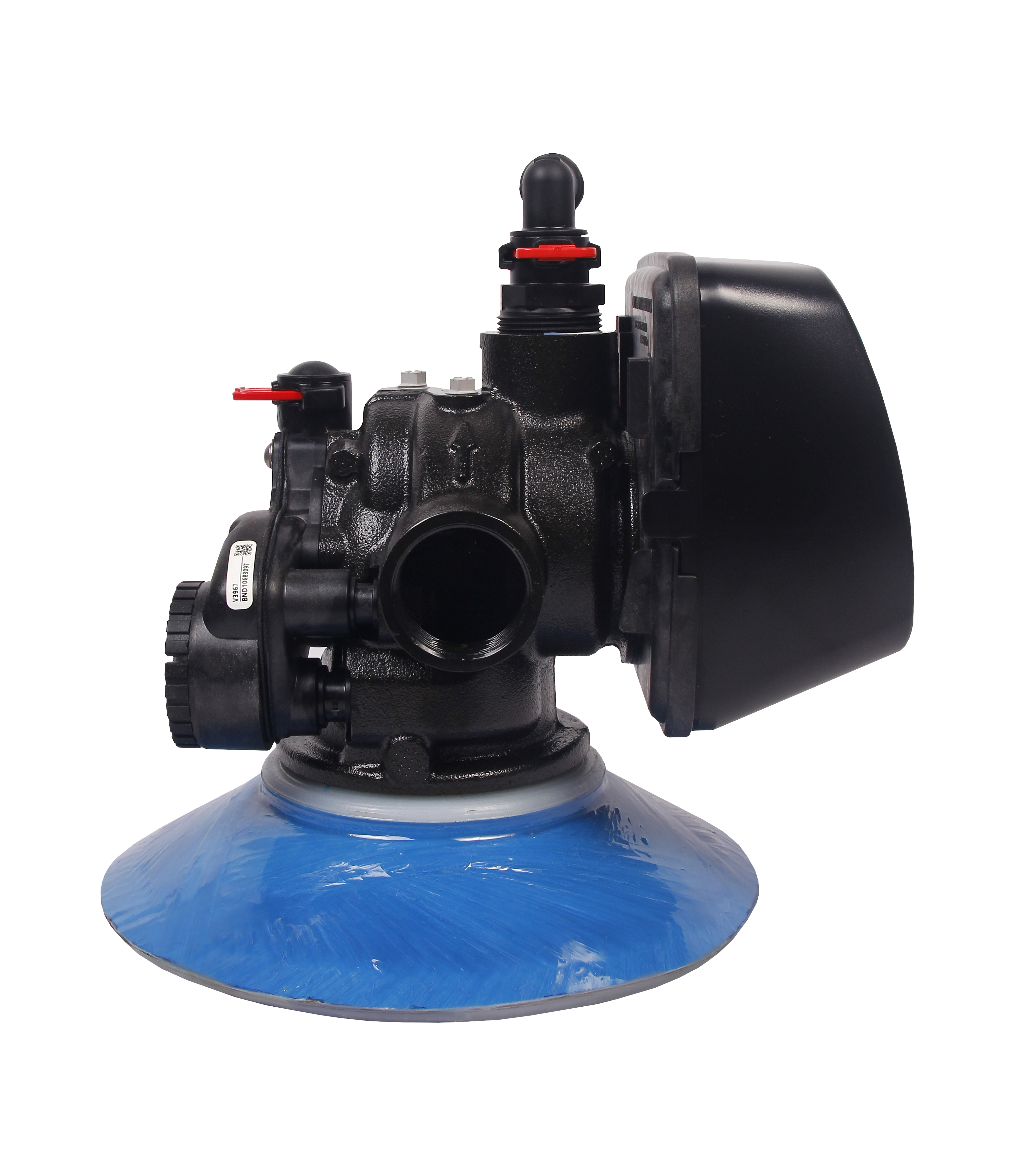

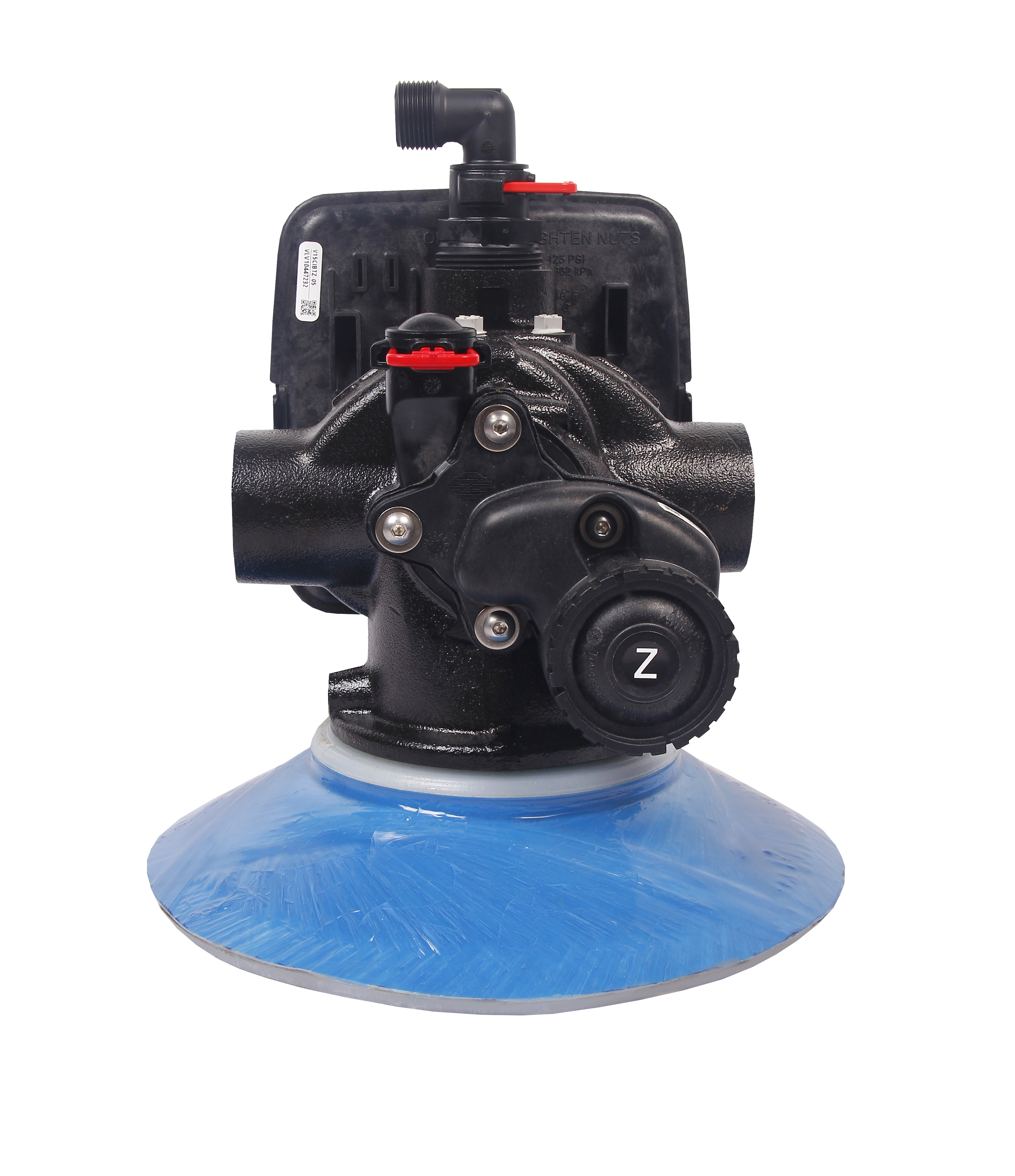

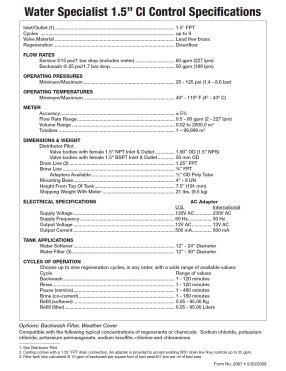

CLACK WS1.5CI BACKWASH ONLY FILTER (TIME CLOCK CONTROL VALVE ONLY)

Service flow rate of 27 gpm, backwash 27 gpm

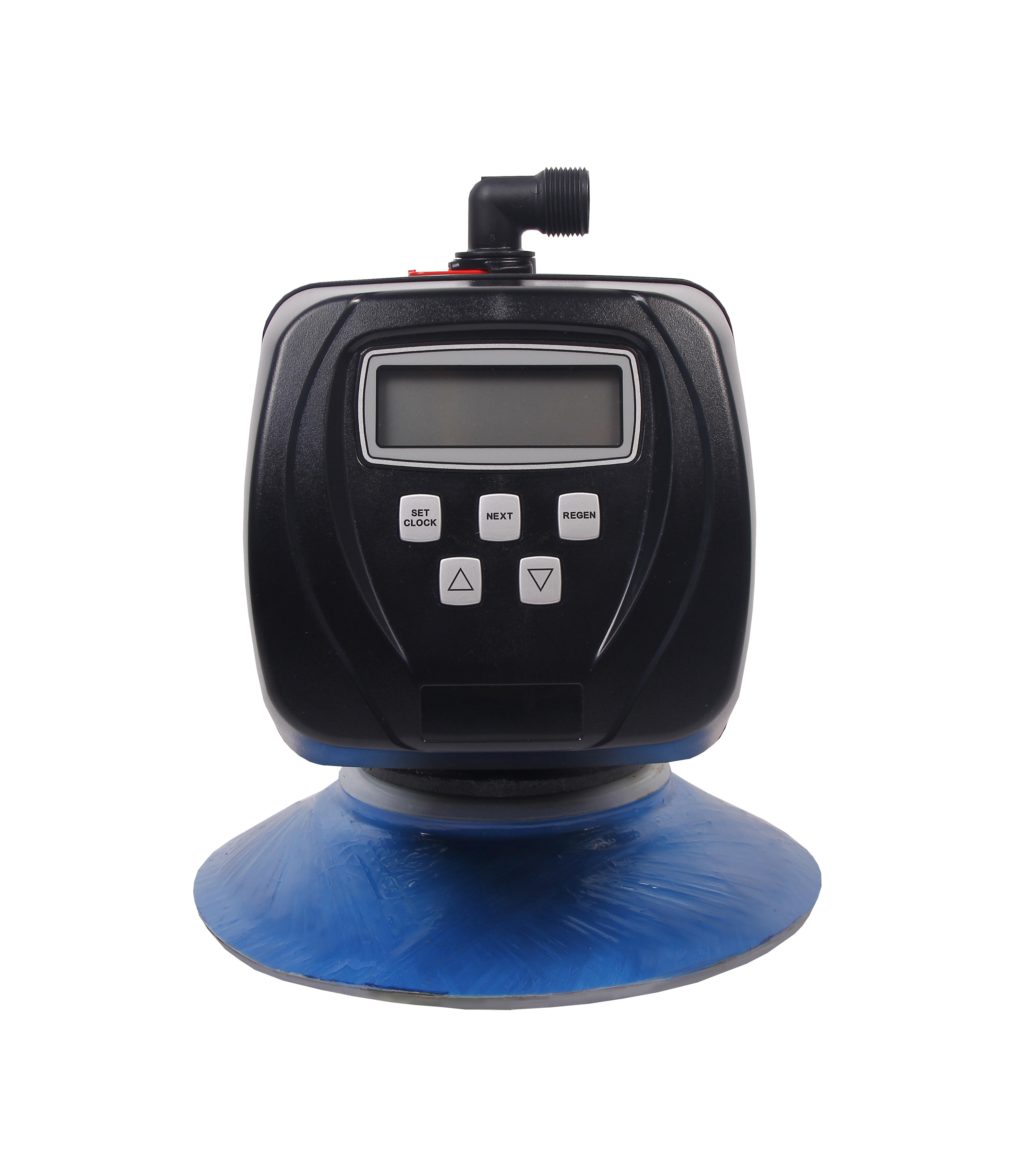

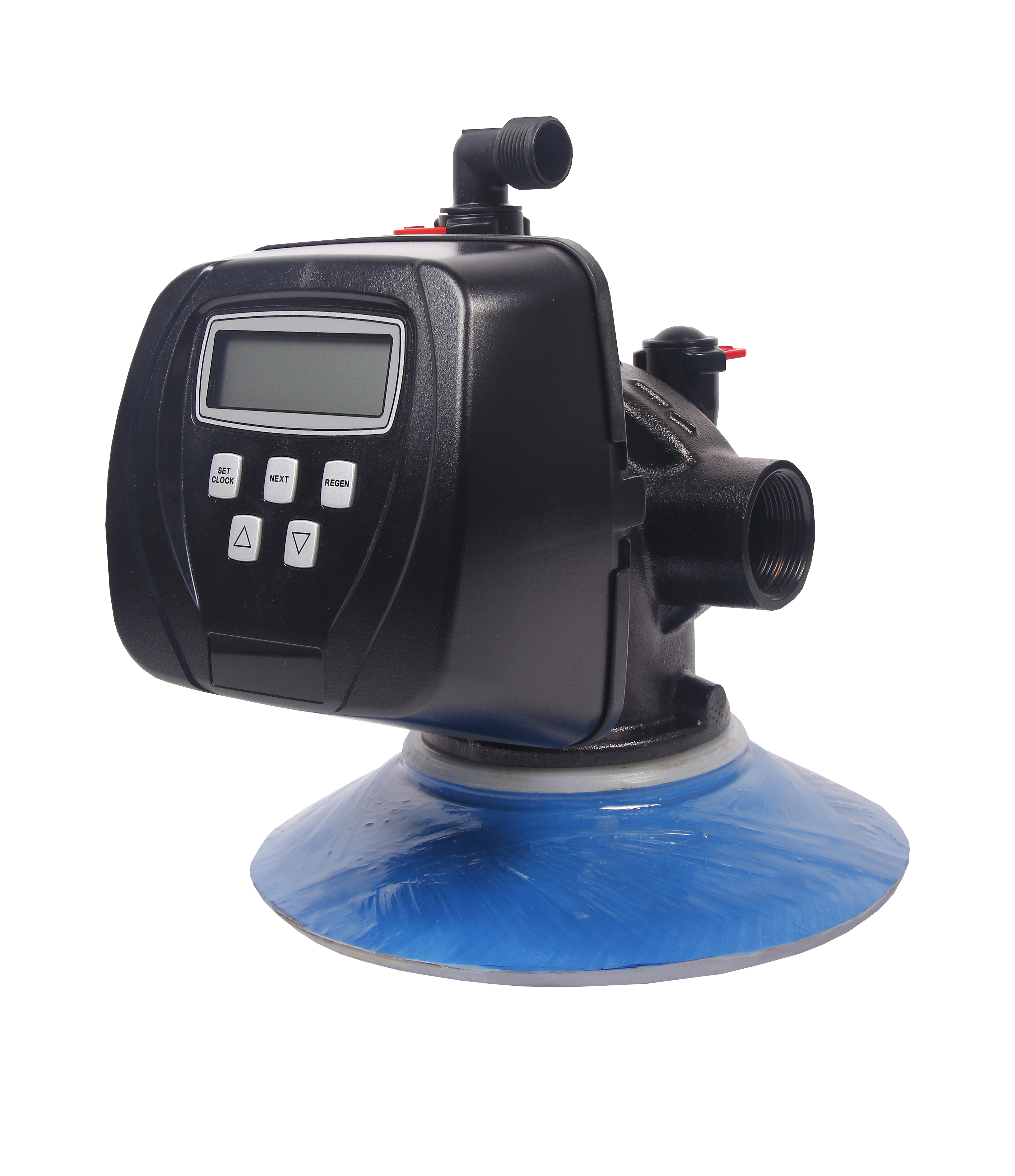

Front panel display for time of day, days until next regeneration

Double backwash feature offers optimum regeneration, cleaning ability and efficiency

Coin Cell Lithium battery back-up with a 8 hour carry over

Auto detection of 50/60 Hz line frequency, with automatic 12/24 hour time keeping formats

12-volt output AC Adapter provides safe and easy installation

Inlet/Outlet Fittings: ¾" to 1.5” NPS

Number of cycles: up to 6

Valve Material: Noryl (1) or equivalent

Regeneration: downflow

Operating pressure (min/max): 1,4 bar- 8,6 bar

Operating temperature (min/max): 4C - 43C

Electrical Specifications (AC Adapter)

Supply Voltage: 230V AC

Supply Frequency: 50 Hz

Output Voltage: 12V AC

Output Current: 500 mA
