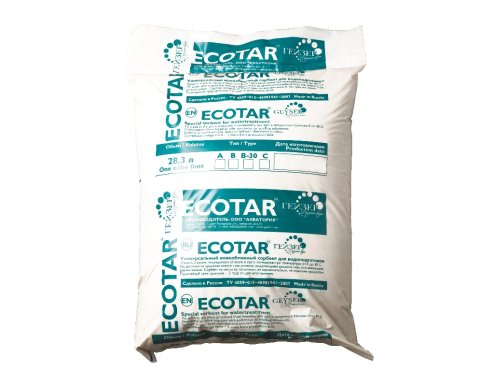

Multimix ion exchange resin ECOTAR B30 25 l/bag

Ecotar B30 is intended for water treatment to remove dissolved iron, manganese, and hardness salts along with insignificant content of organic substances. It is recommended for the treatment of water from artesian wells. Visual evaluation of the initial water: initially transparent water gets yellow in the course of standing and forms a brown precipitate.

Ecotar consists of four different ion-exchange and sorption materials: cation-exchange resins with different bead sizes, macroporous anion-exchange resins, special inert resins, and quartz. Ecotar removes mechanical impurities, dissolved iron, manganese, organically bound iron, hardness-causing salts, heavy metal ions, and humic acids from water.

As water passes through the upper layer of Ecotar inert resin, manufactured using a special technology, mechanical particles as small as 10 µm are removed. The inert resin also retains fine Ecotar particles during regeneration, preventing clogging of the control valve filter.

The main component of Ecotar filter media is cation-exchange resin, in which ion exchange takes place at the surface of the resin beads. As a result, iron ions and hardness-causing salts are removed much faster because the substances do not need to diffuse through the protective layer of the resin beads. Resin regeneration is equally efficient.

Thanks to a special manufacturing technology, Ecotar resin beads are packed closely together and provide a large contact area with water, ensuring effective removal of impurities. Iron can form stable, negatively charged complexes with organic compounds that cannot be removed by cation-exchange resins. For this reason, Ecotar also contains macroporous anion-exchange resins.

Several Ecotar blends have been developed to remove different types of specific impurities from water:

Blend A: Removes dissolved iron, complex organic iron compounds, hardness-causing salts, and manganese. Recommended for treating water from wells and shallow boreholes. Visual water characteristics: yellowish-brown colour; sediment forms after standing.

Blend B: Removes dissolved iron (up to 15 mg/l), manganese, and hardness-causing salts when the water contains only a small amount of organic compounds. Recommended for treating water from wells and deep boreholes. Visual water characteristics: clear and colourless initially; after standing, the water turns yellow and brown sediment forms.

Blend B30: Removes dissolved iron (up to 30 mg/l), manganese, and hardness-causing salts when the water contains only a small amount of organic compounds. Recommended for treating water from wells and deep boreholes. Visual water characteristics: clear and colourless initially; after standing, the water turns yellow and brown sediment forms.

Blend C: Removes elevated levels of organic compounds, including iron and manganese. Recommended for treating water from shallow wells, driven wells, and open water bodies. Visual water characteristics: yellow to brown colour; no sediment forms after standing.

Operating Conditions

• Water flow rate: 10–20 l/h
• Minimum bed height: 50 cm
• Regenerating agent: NaCl
• Regenerant dosage: 110–130 g/l
• Regenerant concentration: 10%
• Backwash flow rate: 8–12 m/h

Material Properties

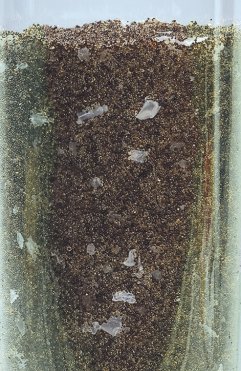

• Appearance: Mixture of granules ranging in colour from white to black
• Maximum water temperature: 40 °C
• Moisture content: 45–70%
• Average particle size: 0.3–5.0 mm
• pH range: 0–14

 Technical specifications:

Recomennded conditions for resins:

Advantages:

•  Removes high iron content, up to 30 ppm
•  Environmentally safe regeneration with a common salt solution
•  Removal of hardness salts and heavy metal ions
•  Works well at low and high pH
•  Do not required high flow rates at backwash

Main properties of resins
