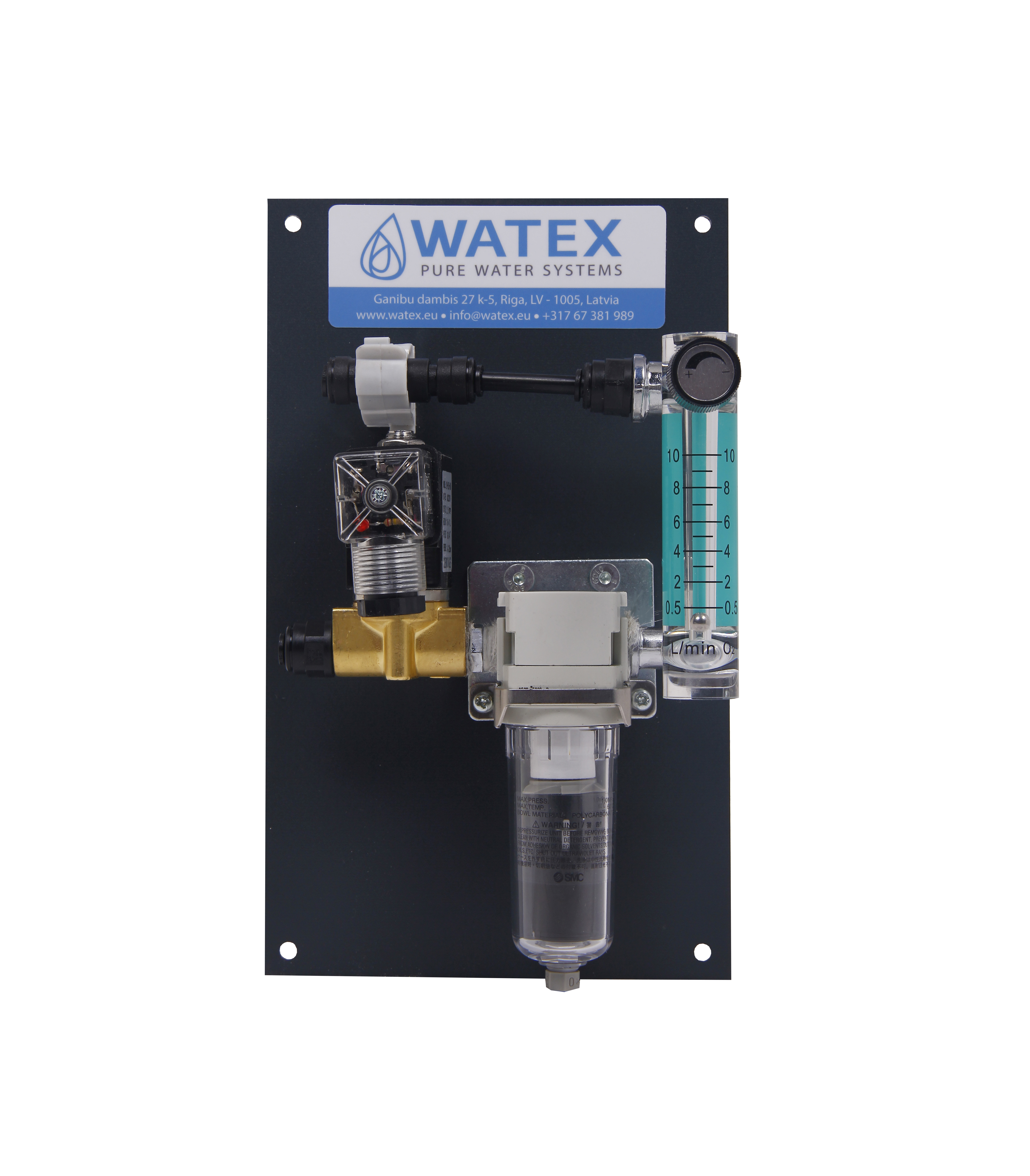

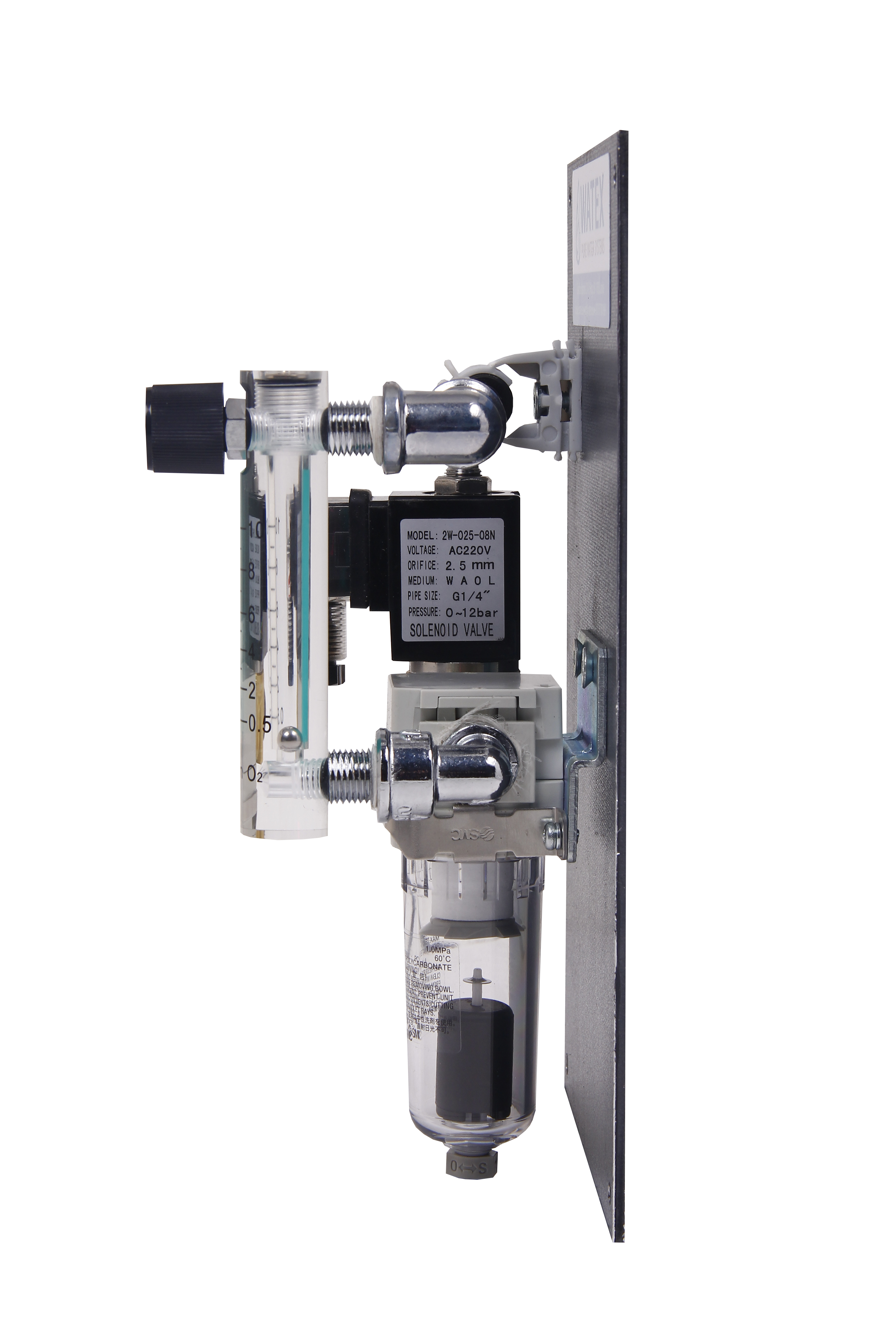

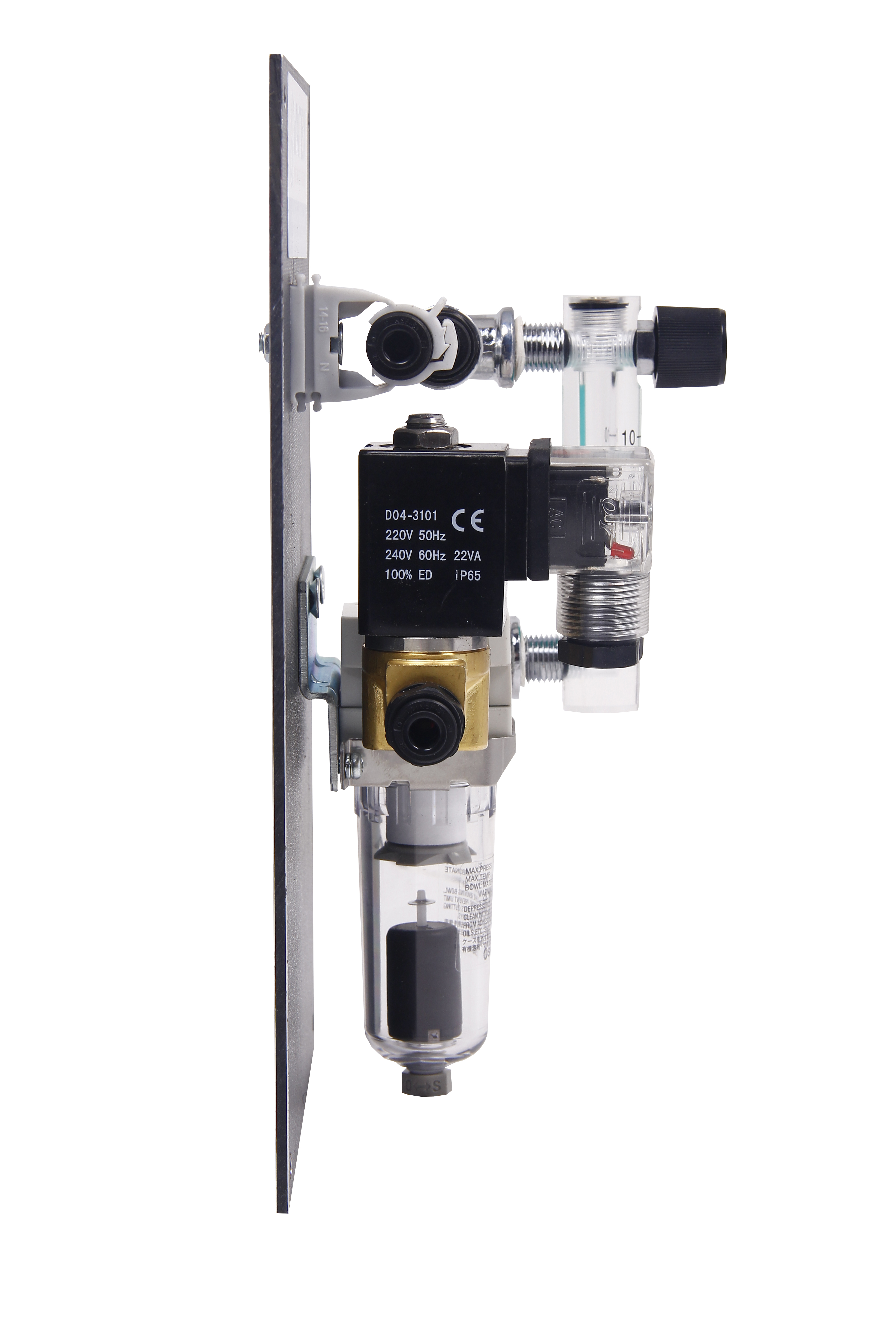

The air control system consists of a non-return valve, a rotometer (flow meter), a condensate trap and an electric valve.
SMC AF20 series automatic condensate separator with filtration size 5 µm, working pressure 0.1 - 1.0 MPa, operating temperature -5 ° C to +60 ° C and ¼ ”connection is used.
2W series solenoid operating pressure 0 - 1.0 MPa, ¼ ”connection.
Show full descriptionProduct photos are for illustrative purposes only. The product’s appearance and configuration may vary without affecting its technical specifications or functionality.
|

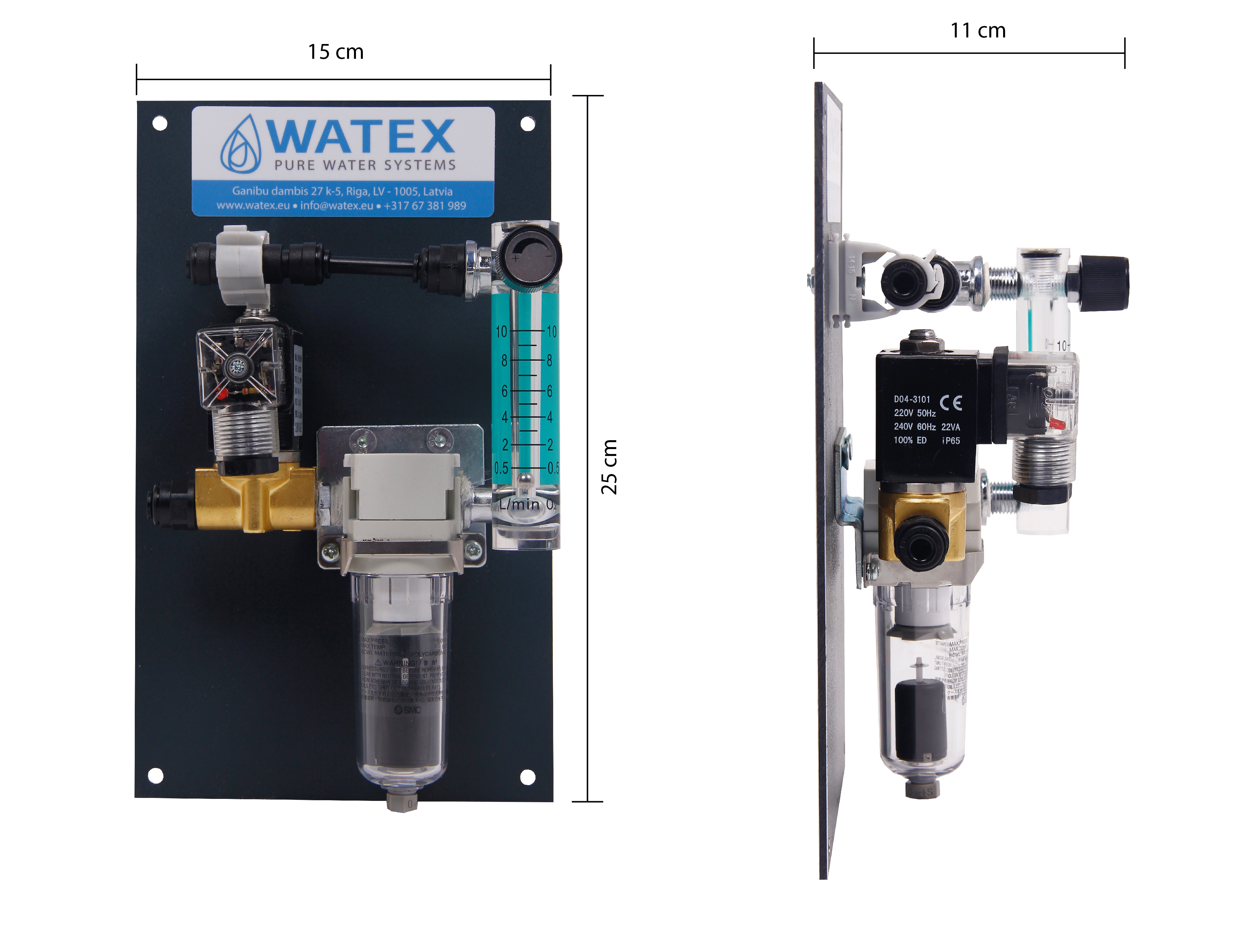

Width cm |
Height cm |
Length cm |
Weight kg |
|---|---|---|---|
|
15.00 |
13.00 |
25.00 |
0.90 |
