A.R.I Air valve S-050 3/4'' BSPT PN16

Manufacturer: ARI
Product code: S-050-3/4BSPT
Combination does not exist
Do you have any questions?
Manufacturer: ARI
Product code: S-050-3/4BSPT
Combination does not exist
€ 68.63
€ 83.04
– +

The A.R.I S-050-3/4″ air valve is designed to automatically remove accumulated air from pressurized systems.

  • Single-chamber air valve, controlled directly by the flowing medium
  • Releases air from pressurized systems
  • Connection size: 3/4″ (BSPT connection with external thread)
  • Float made of foamed polypropylene
  • Housing made of high-strength composite material
  • Suitable for installation on most pumps, before or after filters and pressure reducers
Show full description

Product photos are for illustrative purposes only. The product’s appearance and configuration may vary without affecting its technical specifications or functionality.

Technical specifications of A.R.I S-050-3/4″:

  • Water connection: 3/4" male (PN 16)
  • Air release connection 6 mm female
  • Operating pressure: 0.2–16 bar
  • Operating temperature: 60 °C
  • Manufactured in Israel

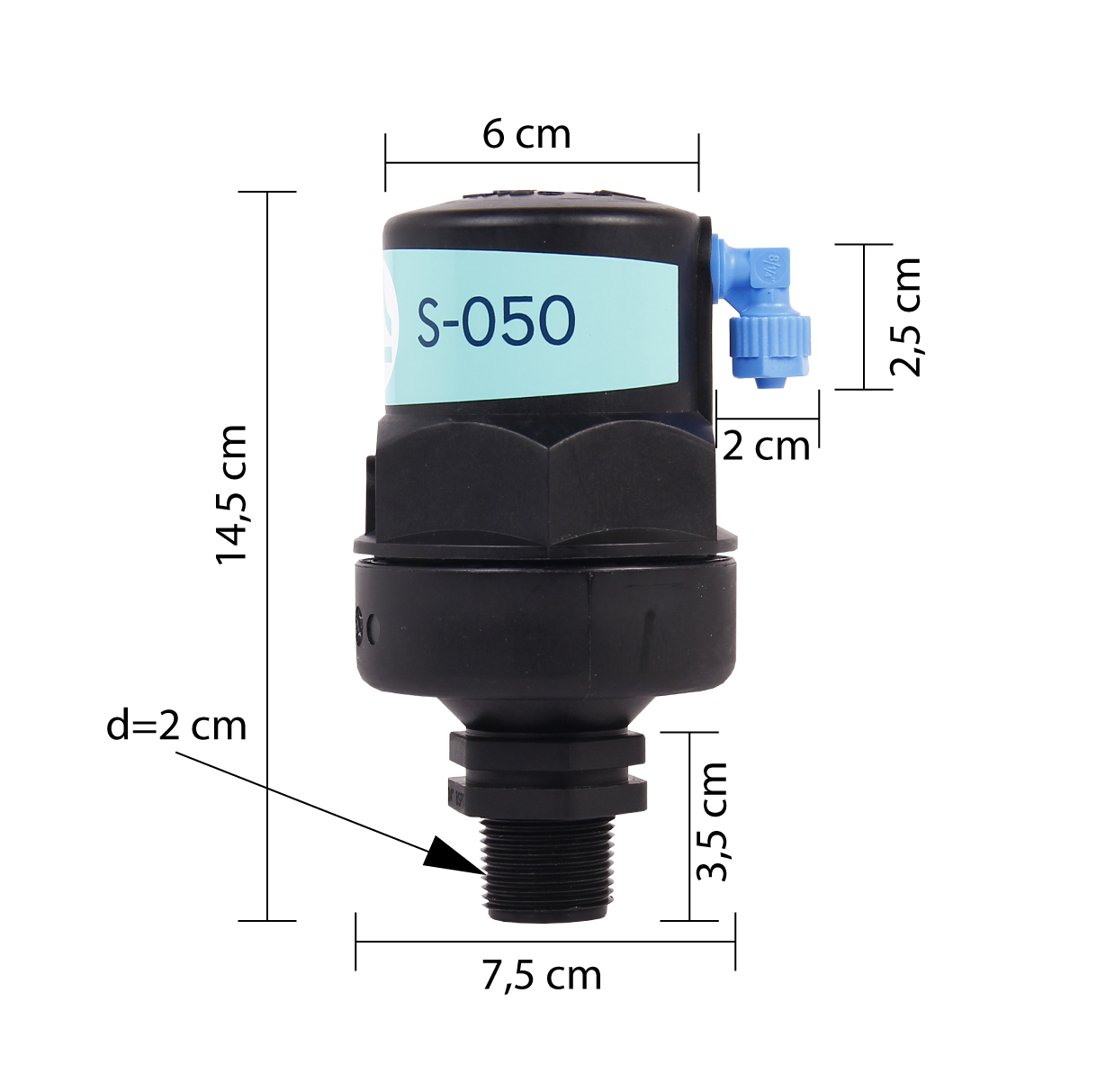

Width cm

Height cm

Length cm

Weight kg

7.00

7.00

14.00

0.30
Show full description

Technical Brocure
 /ARIS050WTRCATEN1023.pdf
